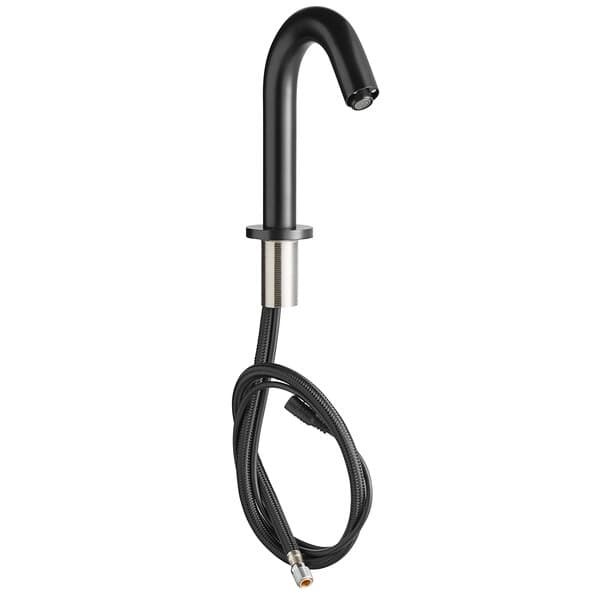

Waterloo Deck Mount Matte Black Hands-Free Sensor Faucet with 4 9/16 Gooseneck Spout and Concealed Sensor

Choose this Waterloo EFDMG sensor faucet for easy, hands-free operation with a modern look

This Waterloo deck-mounted matte black hands-free sensor faucet is the perfect solution when you need a dependable water fixture for your facility's restrooms and hand-washing areas! It features a 4 9/16 long, angled gooseneck spout on a single hole base, with a matte black finish that provides a contemporary and refined look wherever it's installed. The sensor is also concealed so as to be more aesthetically pleasing than a traditional base-mounted sensor.

Because a sensor activates the water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to length, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.

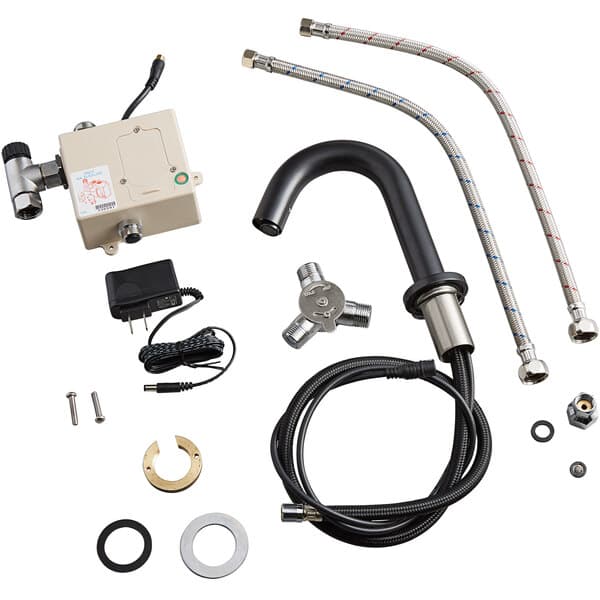

An AC adapter is included to provide power for the faucet's control module, which installs below the countertop and connects to the faucet with an 18" flexible supply line. A mixing valve also allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.

Waterloo sensor faucets provide the industry-leading quality you expect. With a heavy brass faucet body and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.


  • 4 9/16 long x 7 1/8" tall gooseneck spout, 2.2 GPM flow rate

  • Deck-mounted single base, (1) 18" stainless steel supply line to connect module to faucet

  • Mixing valve, (2) 18" stainless steel supply lines, 1/2" NPSM x 3/8" female fittings

  • Solid brass construction for long life, matte black finish

  • Includes AC adapter and control module, concealed sensor


  • Spout Length 4 9/16 Inches
  • Spout Height 7 1/8 Inches
  • Battery Type AA
  • Color Badge Colors
  • Compliances ADA Compliant
  • Compliances Commonwealth of Massachusetts
  • Compliances NSF/ANSI 372
  • Compliances NSF/ANSI 61
  • Faucet Centers 1 Mounting Hole
  • Faucet Centers Flex Inlets Included
  • Faucet Color Matte Black
  • Features ADA Compliant
  • Features Hands Free
  • Features NSF Listed
  • Finish Black
  • Flow Rate 2 1/5 GPM
  • Material Brass
  • Maximum Water Temperature 194 Degrees F
  • Mounting Style Deck Mounted
  • Plug Type NEMA 1-15P
  • Product Type Faucets
  • Spout Clearance 4 3/8 Inches
  • Spout Type Gooseneck
  • Type Faucets
  • Water Inlet Size 1/2 Inches
