Item #750EFDMHSBZ2

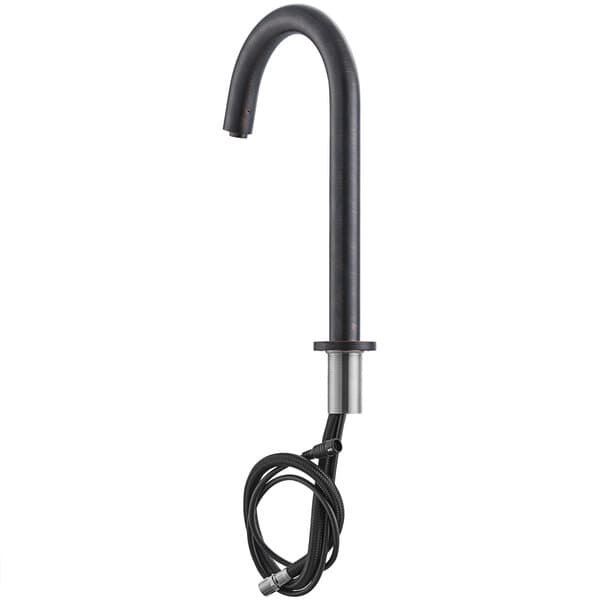

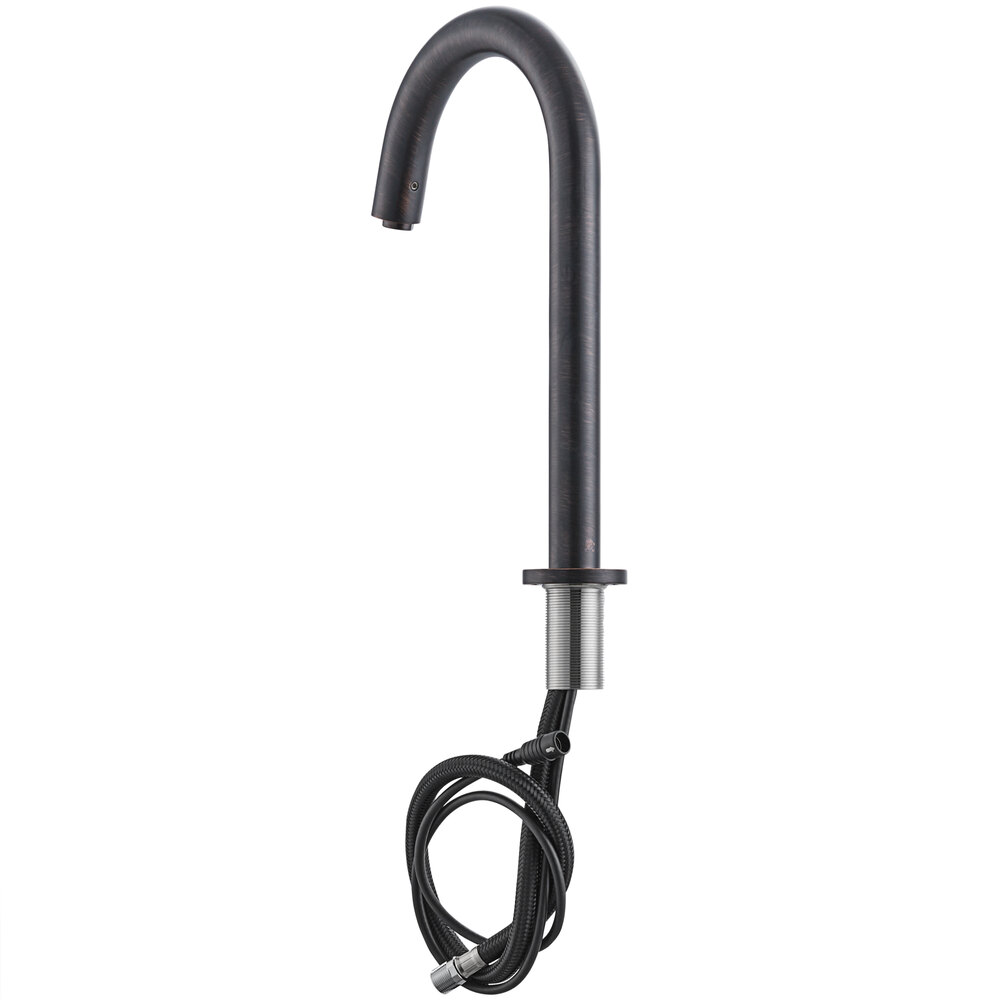

Waterloo Deck Mount Bronze Hands-Free Sensor Faucet with 6 1/2" Gooseneck Spout and Concealed Sensor

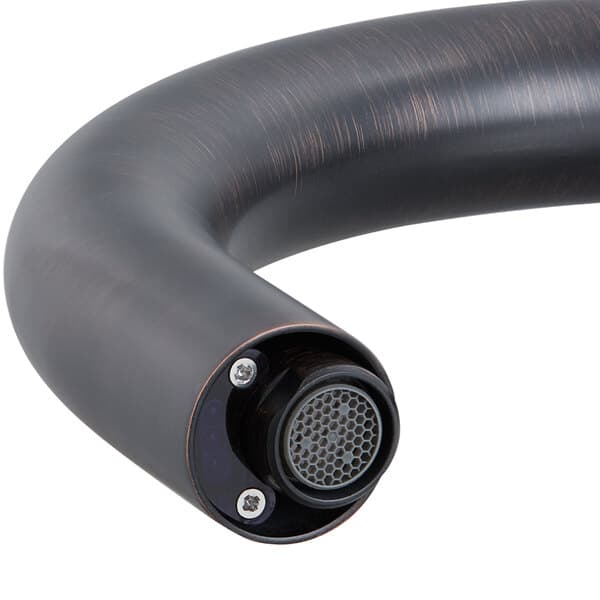

This Waterloo deck-mounted bronze hands-free sensor faucet is the perfect solution when you need a dependable water fixture for your facility's restrooms and hand-washing areas! It features a 6 1/2" long, angled gooseneck spout on a single hole base, with a bronze finish that provides a contemporary and refined look wherever it's installed. The sensor is also concealed so as to be more aesthetically pleasing than a traditional base-mounted sensor.

This unit has an infrared proximity sensor with a 30 second timeout feature and an adjustable sensor range of 2-15 cm. Because a sensor activates the water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to length, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.

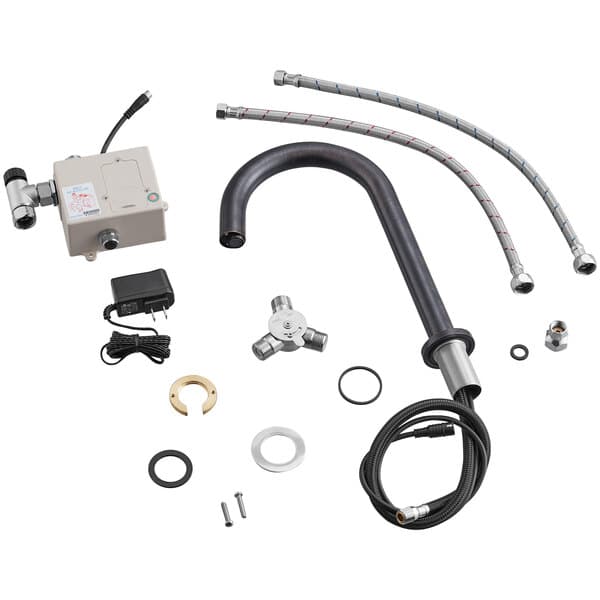

The UL certified AC adapter with a level VI efficiency rating provides power for the faucet's control module, which installs below the countertop and connects to the faucet with an 18" flexible supply line. Or, use (4) AA batteries for cordless operation during power outages. A mixing valve also allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.

Waterloo sensor faucets provide the industry-leading quality you expect. With a heavy brass faucet body and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.

Overall Dimensions:
Spout Length: 6 1/2"
Faucet Height: 12 7/16"

Overview

  • 1.2 GPM flow rate

  • Deck-mounted single base, (1) 18" stainless steel supply line to connect module to faucet

  • Mixing valve, (2) 18" stainless steel supply lines, 1/2" NPSM x 3/8" female fittings

  • Solid brass construction for long life, bronze finish

  • Includes AC adapter and control module, concealed sensor

ADA Compliant

This item meets criteria established by the Americans with Disabilities Act (ADA).

CSA, US and Canada

This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.

Specs

  • Spout Length 6 1/2 Inches
  • Faucet Height 12 7/16 Inches
  • Battery Type AA
  • Faucet Centers Single
  • Features ASME A112.18.1-2018 / CSA B125.1-18
  • Features California AB100 Compliant
  • Features Flex Inlets Included
  • Features Hands Free
  • Features Massachusetts Accepted Plumbing Product
  • Features NSF/ANSI 372
  • Features NSF/ANSI 61
  • Finish Bronze
  • Flow Rate 1 1/5 GPM
  • Material Brass
  • Mounting Holes Required 1 Mounting Hole
  • Mounting Style Deck Mounted
  • Pressure Rating 60 PSI
  • Spout Clearance 7 15/16 Inches
  • Spout Type Gooseneck
  • Temperature Rating 194 Degrees Fahrenheit
  • Type Touchless Faucets
  • Water Inlet Size 3/8 Inches
