Item #750EFDMSDBK
Waterloo Deck-Mounted Matte Black Hands-Free Dual-Sensor Faucet with Foam Soap Dispenser
This Waterloo matte black dual-sensor faucet is the perfect solution when you need a dependable water fixture for your facility's restrooms and hand-washing areas! It features a dual sensor foam soap dispenser and water faucet on a single hole base, with a matte black finish that provides a contemporary and refined look wherever it's installed. The sensor is also concealed so as to be more aesthetically pleasing than a traditional base-mounted sensor. Made from solid brass with a matte black finish, this dual faucet provides a polished look and superior durability.
This faucet is equipped with an infrared proximity sensor with an adjustable range of 1"-6" and a rapid 0.2-second water response time. It also features a 1500 mL soap reservoir that dispenses soap in just 2 seconds. Foaming soap (sold separately) is required for use. To avoid the risk of clogging, the soap dispenser will automatically dispense soap once every 12 hours when not in use. Because a sensor activates both the soap and water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to length, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.
The UL certified AC adapter with a Level VI efficiency rating is included to provide power for the faucet's control module, which installs below the countertop and connects to the faucet with a flexible stainless steel supply line. A mixing valve also allows you to easily set the output temperature to the desired level between 41 and 158 degrees Fahrenheit. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. 9/16"-24 female connector fittings connect the mixing valve to your building's water lines.
Waterloo sensor faucets provide the industry-leading quality you expect. With a heavy brass faucet body and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.
Overall Dimensions:
Spout Length: 6 5/16"
Faucet Width: 2 3/4"
Faucet Height: 5 7/8"
Overview
Dual sensor foam soap dispenser and water faucet, 1.2 GPM flow rate
Deck-mounted single hole base with stainless steel supply line to connect module to faucet
9/16"-24 female connector fittings
Solid brass construction with matte black finish for long life

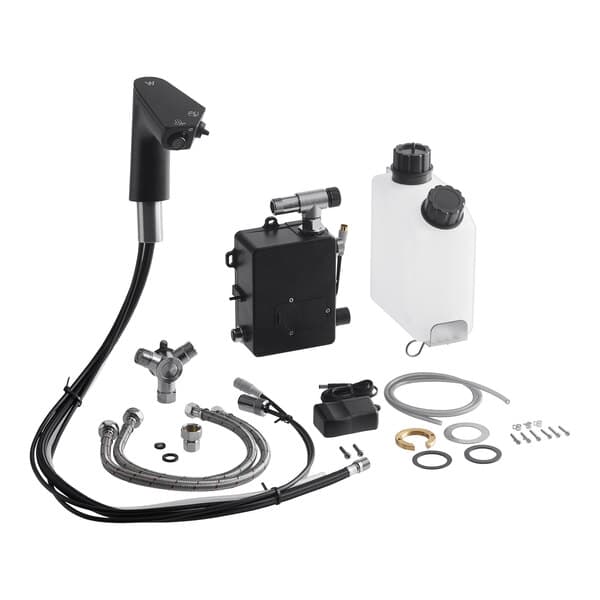

Includes AC adapter and control module
1-15P
This unit comes with a NEMA 1-15P plug.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Specs
- Spout Length6 5/16 Inches
- Faucet Width2 3/4 Inches
- Faucet Height5 7/8 Inches
- Adjustable Sensor Range1 Inch
- Adjustable Sensor Range6 Inches
- Capacity1500 ML
- ColorBlack
- Dispenser StyleDeck Mount
- Dispenser TypeAutomatic
- Faucet CentersSingle
- FeaturesADA Compliant
- FeaturesASME A112.18.1-2018 / CSA B125.1-18
- FeaturesMassachusetts Accepted Plumbing Product
- FeaturesNSF Listed
- FinishMatte
- Flow Rate1 1/5 GPM
- IncludedFlex Inlets
- MaterialBrass
- Mounting Holes Required1 Mounting Hole
- Mounting StyleDeck Mounted
- Plug TypeNEMA 1-15P
- Power TypeAC Adapter
- Spout Clearance3 1/8 Inches
- Spout TypeCast
- StyleFoaming
- Temperature Rating158 Degrees F
- Temperature Rating41 Degrees F
- TypeTouchless Faucets
- Water Inlet Size3/8 Inches
Features

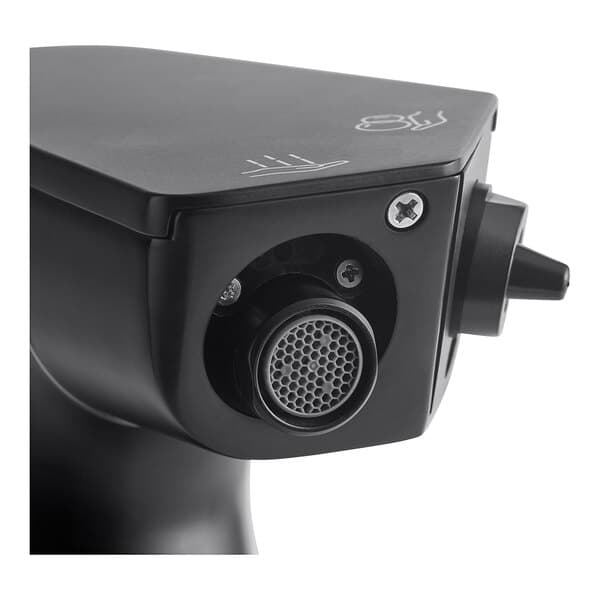

Adjustable Sensor
This faucet is equipped with an infrared proximity sensor with an adjustable range of 1"-6" and a rapid 0.2-second water response time. It also features a 1,500 mL soap reservoir that dispenses soap in just 2 seconds. Foaming soap (sold separately) is required for use. To avoid the risk of clogging, the soap dispenser will automatically dispense soap once every 12 hours when not in use.

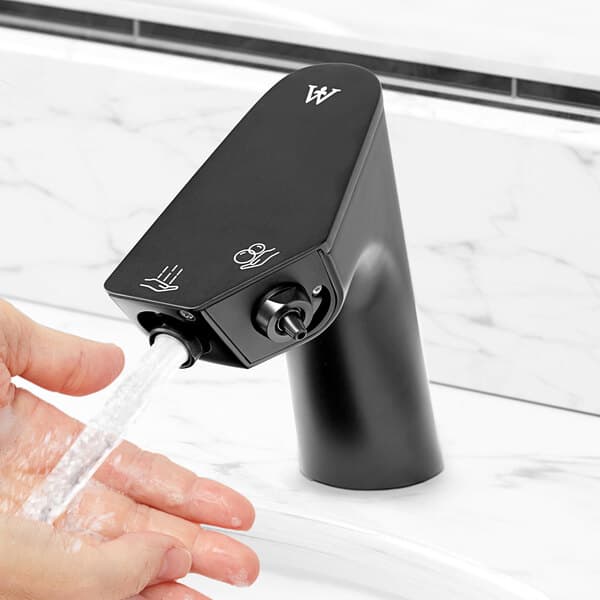

Hands-Free Operation
Because a sensor activates both the soap and water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to length, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.
Easy Installation
The UL-certified AC adapter with a Level VI efficiency rating is included to provide power for the faucet's control module, which installs below the countertop and connects to the faucet with a flexible stainless steel supply line.
Optimal Temperature Control
A mixing valve also allows you to easily set the output temperature to the desired level between 41 and 158 degrees Fahrenheit. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. 9/16"-24 female connector fittings connect the mixing valve to your building's water lines.
Industry-Leading Quality
Waterloo sensor faucets provide the industry-leading quality you expect. With a heavy brass faucet body and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.
