Item #750EFWM

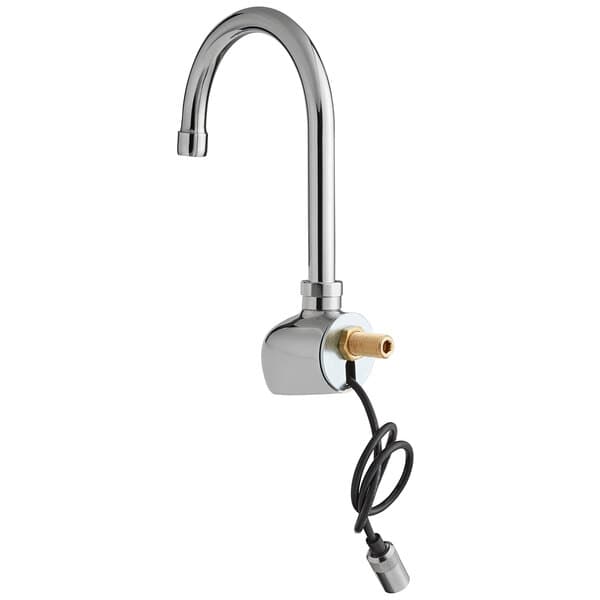

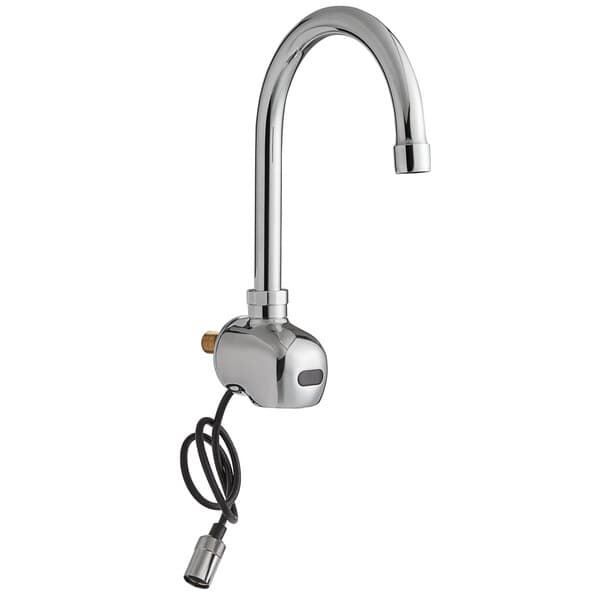

Waterloo Wall Mount Hands-Free Sensor Faucet with 6 3/16" Gooseneck Spout
This Waterloo wall-mounted hands-free sensor faucet is the perfect solution when you need a dependable water fixture for your facility's restrooms and hand-washing areas! It features a 6 3/16" long gooseneck spout on a single hole base to provide a contemporary and refined look wherever it's installed.
This unit has an infrared proximity sensor with a 30 second timeout feature and an adjustable sensor range of 1"-8". Because a sensor activates the water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to length, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.

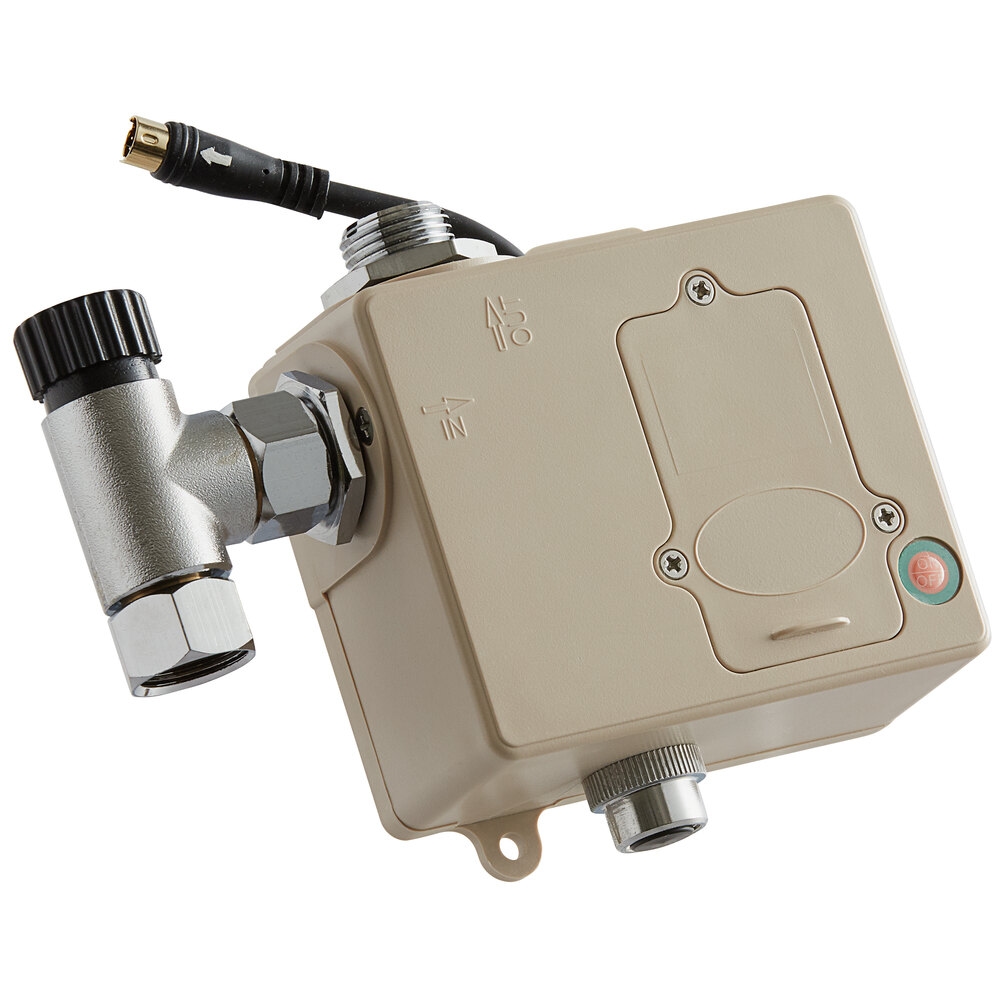

The UL certified AC adapter with a level VI efficiency rating provides power for the faucet's control module, which installs below the countertop and connects to the faucet with an elbow and a 30" flexible supply line. Or, you can also use (4) AA batteries if an outlet isn't convenient, and to provide backup power in case of an outage. A mixing valve also allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.
Waterloo sensor faucets provide the industry-leading quality you expect. With heavy chrome-plated brass faucet bodies and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.
Overall Dimensions:
Spout Length: 6 3/16"
Faucet Height: 11 1/16"
Overview
1-15P
This unit comes with a NEMA 1-15P plug.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
Hands-Free/Touchless
This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.
Specs
- Spout Length6 3/16 Inches
- Faucet Height11 1/16 Inches
- Adjustable Sensor Range1 Inch
- Adjustable Sensor Range8 Inches
- Battery TypeAA
- Faucet CentersSingle
- FeaturesADA Compliant
- FeaturesASME A112.18.1-2018 / CSA B125.1-18
- FeaturesHands Free
- FeaturesNSF/ANSI 372
- FeaturesNSF/ANSI 61
- FinishChrome
- Flow Rate2 1/5 GPM
- IncludedFlex Inlets
- MaterialBrass
- Mounting Holes Required1 Mounting Hole
- Mounting StyleWall Mounted
- Plug TypeNEMA 1-15P
- Power TypeAC Adapter
- Power TypeBattery
- Pressure Rating60 PSI
- Product TypeFaucets
- Spout Clearance6 5/8 Inches
- Spout TypeGooseneck
- Temperature Rating194 Degrees F
- TypeTouchless Faucets
- Water Inlet Size3/8 Inches
Features

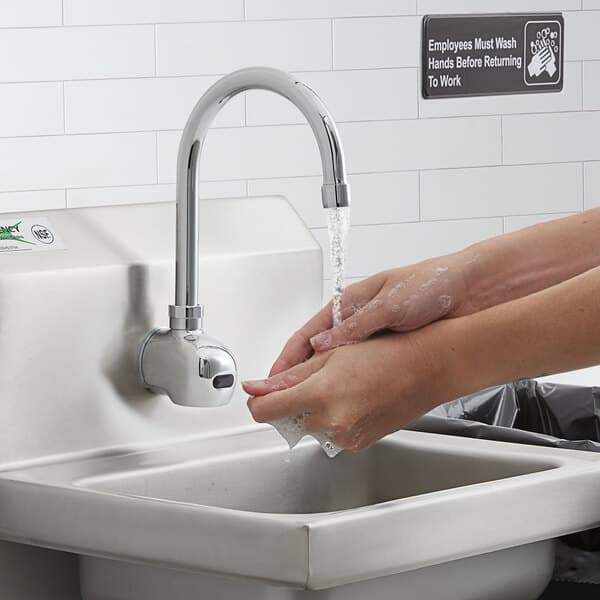

Hands-Free Operation
This unit has an infrared proximity sensor with a 30 second timeout feature and an adjustable sensor range of 1"-8". Because a sensor activates water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to spread, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.

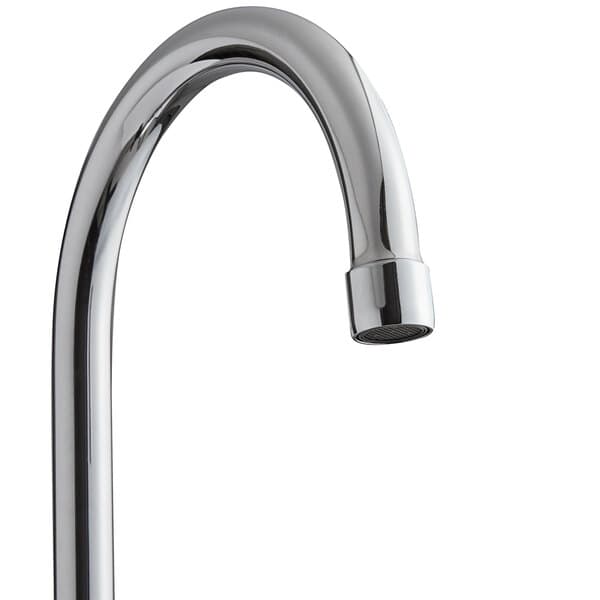

Gooseneck Spout
This faucet comes with a gooseneck spout, and a 2.2 GPM flow rate to provide a soft water flow with minimal splashing for hand washing. A heavy brass body provides excellent durability, while a chrome-plated finish provides an attractive accent.
Easy Installation
The single hole base requires a total of 1 mounting hole to allow easy installation of the faucet inlet. The faucet connects to the control module with an 18" flexible supply line and a sensor cable.

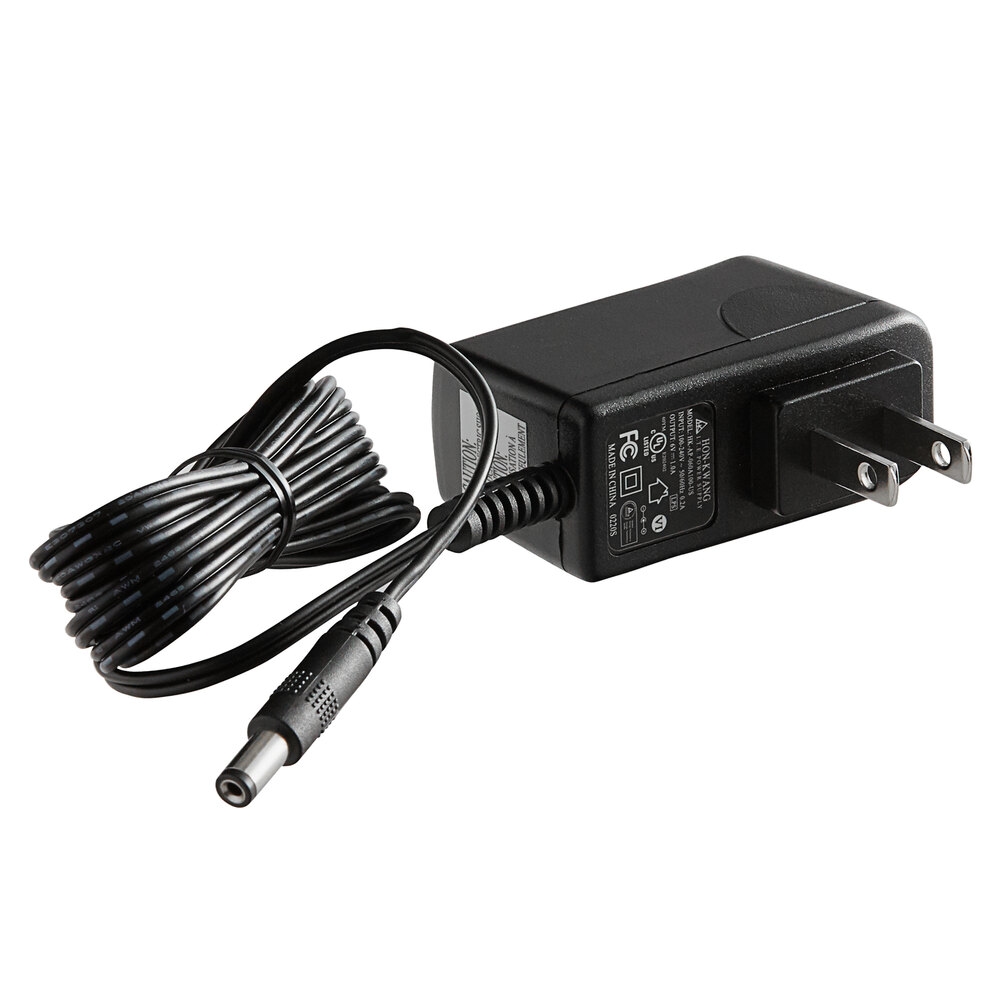

Versatile Power Options
The UL certified AC adapter with a level VI efficiency rating provides power for the faucet's control module, which installs below the countertop. Or, use (4) AA batteries for cordless operation during power outages.

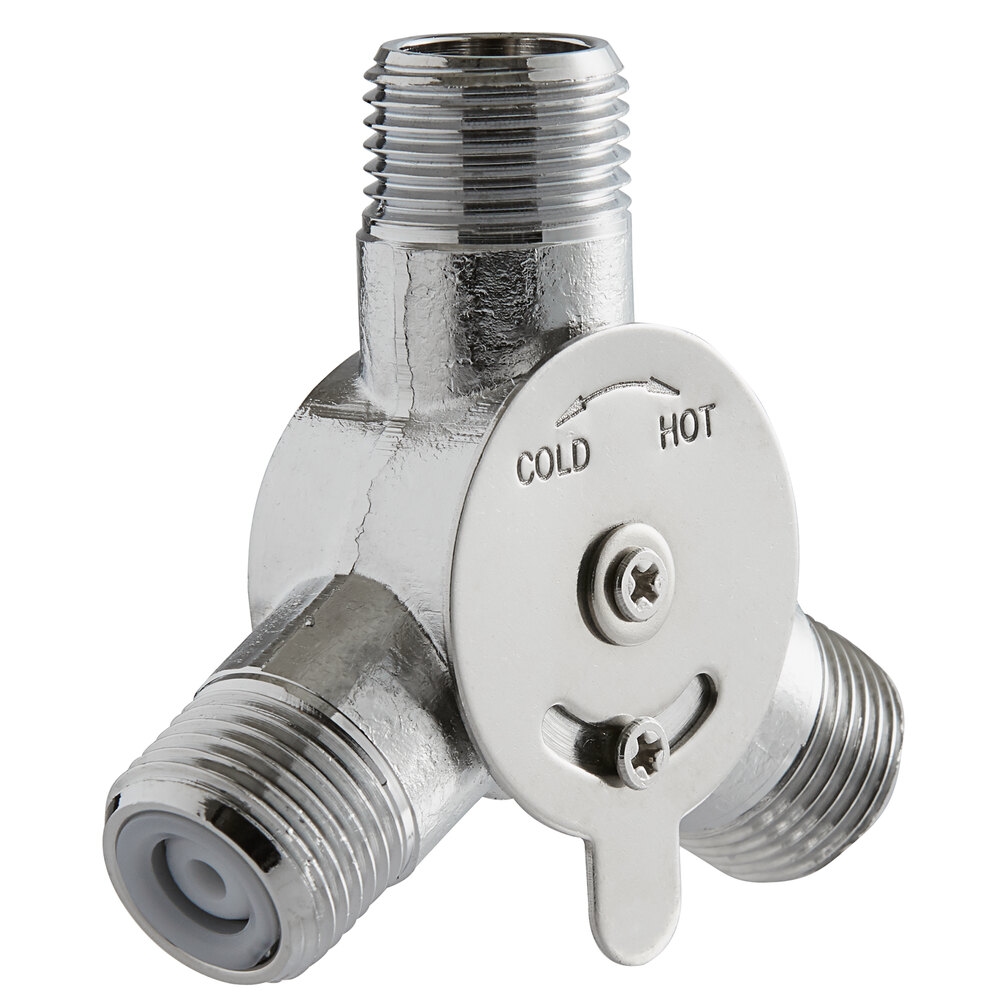

Manual Mixing Valve Included
A mixing valve also allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.
Industry-Leading Quality, 3-Year Warranty
Waterloo sensor faucets provide the industry-leading quality you expect at a price point that won't break the bank. With a heavy brass faucet body and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.
Resources & Downloads
Download useful documents and assets for this product.

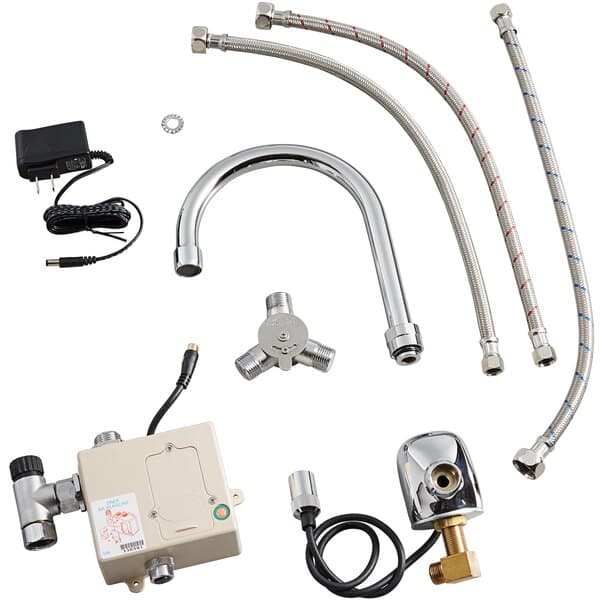

Replacement Parts
