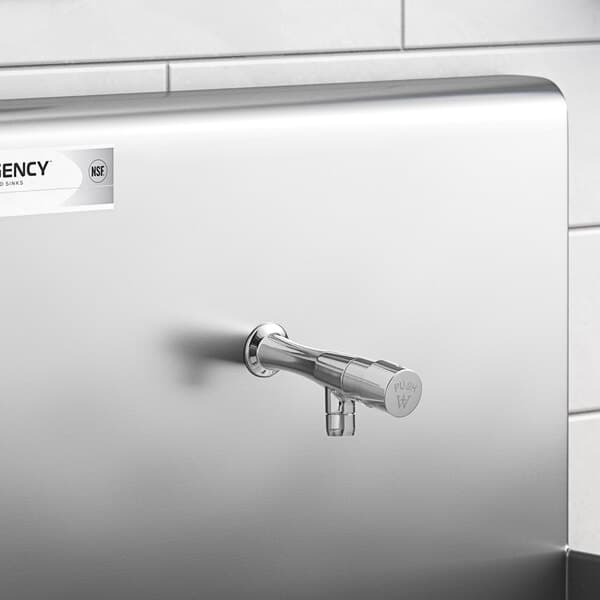

A silver Waterloo wall-mount metering faucet with a 6 11/16" single inlet spout.

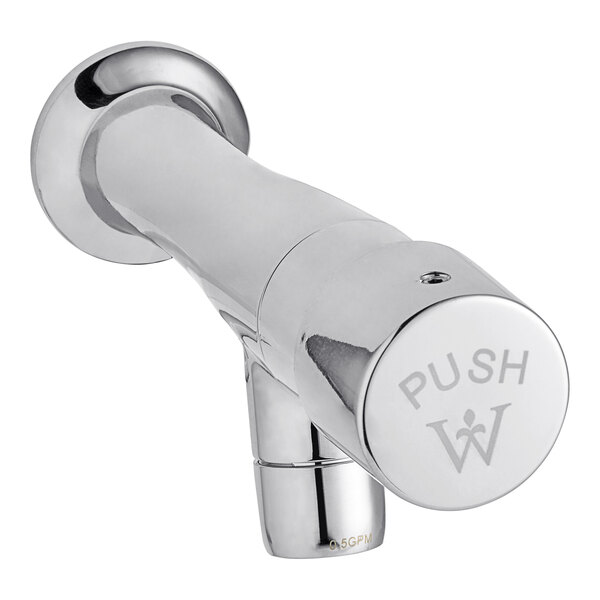

A chrome Waterloo wall-mount metering faucet.

A silver Waterloo metering faucet with a single inlet spout.

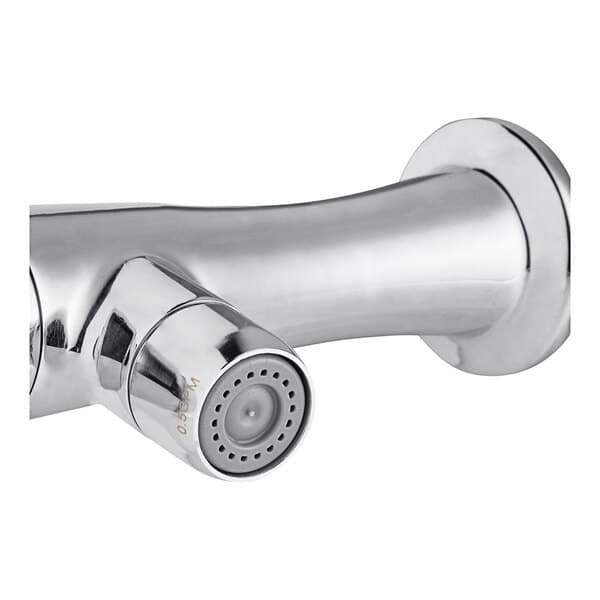

A silver Waterloo wall-mount metering faucet with nozzle.

Item #750MFWS6

Waterloo 0.5 GPM Wall-Mount Metering Faucet with 6 11/16" Single Inlet Spout

This Waterloo wall-mount metering faucet is a great way to regulate water use in your facility! With its push-button handle, this faucet releases a measured amount of water before shutting off, which prevents waste and accidentally leaving the water running. Waterloo faucets provide the industry-leading quality you expect. With heavy-duty chrome-plated brass faucet bodies, cartridges engineered for durability, and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence.

This faucet comes standard with a pre-set water run time of 8 seconds and is easily adjustable. Turn the stem left to shorten the amount of time the valve stays open, or turn the stem right to lengthen it. Once you set the desired run time, place the cap back on the stem, tighten the set screw, then replace the temperature indicator button. This Waterloo faucet has a temperature rating of 40-180 degrees Fahrenheit and boasts a single 1/4"-1/2" NPT inlet. This model also feature a push-button metering cartridge to regulate the water flow. This is the perfect faucet to meet your custom needs.

Overall Dimensions:
Spout Length: 6 11/16"
Faucet Height: 1 7/8"
Faucet Width: 1 3/4"

Overview

6 11/16" spout with a 0.5 GPM flow rate
Wall-mount, single 1/4"-1/2" NPT inlet
Temperature rating of 40-180 degrees Fahrenheit
Heavy-duty chrome-plated brass construction
Adjustable flow time settings, pre-set to 8 seconds

1/4" Water Connection

This unit comes with a 1/4" water connection for water supply.

1/2" Water Connection

This unit comes with a 1/2" water connection for water supply.

NSF Listed

This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Specs

Spout Length6 11/16 Inches

Faucet Width1 3/4 Inches

Faucet Height1 7/8 Inches

Cartridge TypeMetering

Faucet CentersSingle

FeaturesNSF Listed

FinishChrome

Flow Rate1/2 GPM

Handle TypePush

MaterialBrass

Mounting StyleWall Mounted

Spout TypeCast

Temperature Rating180 Degrees F

TypeFaucets

Water Inlet Size1/2 Inches

Water Inlet Size1/4 Inches

Resources & Downloads

Download useful documents and assets for this product.

Customer Q&A

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.
There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
For both wall and deck mounted faucets, installation kits are sold separately. Check the Works With items to find the proper installation kits and parts!
