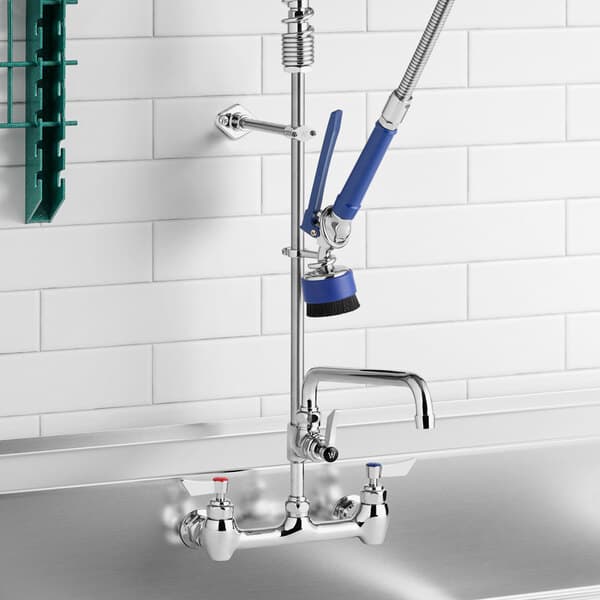

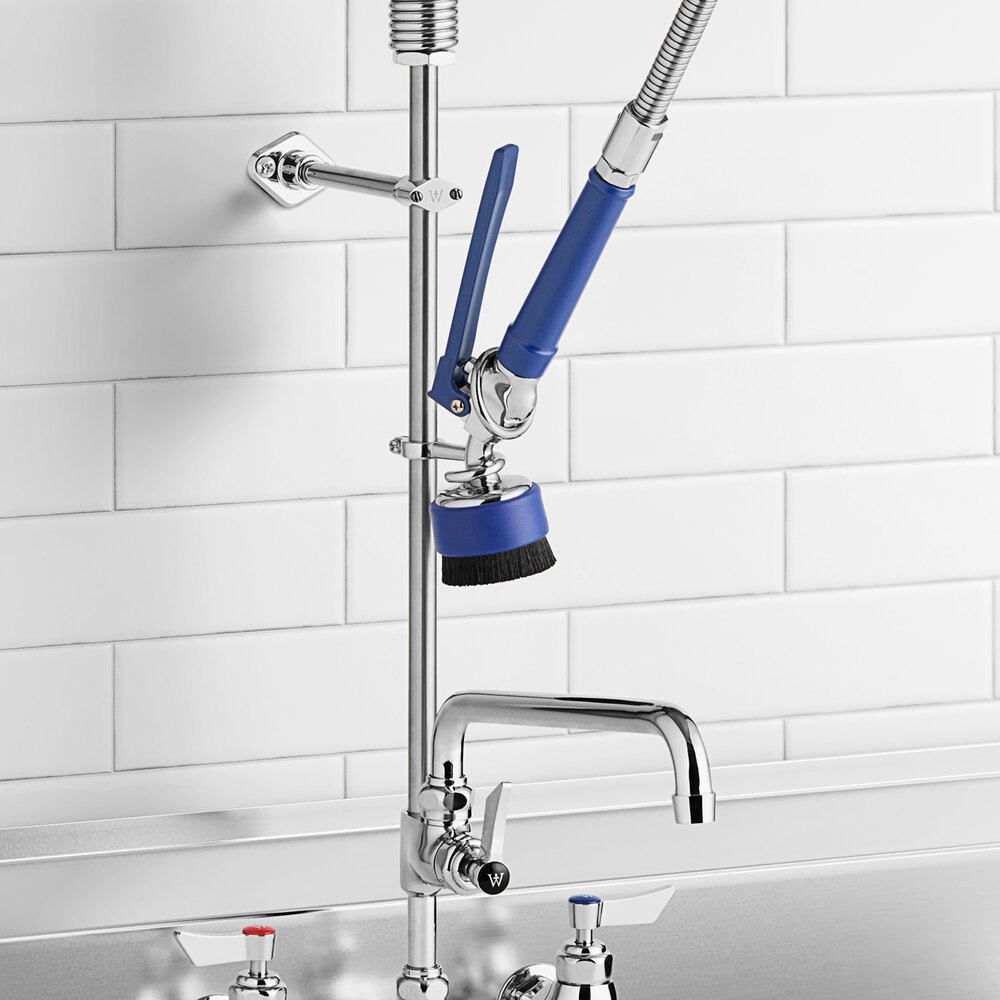

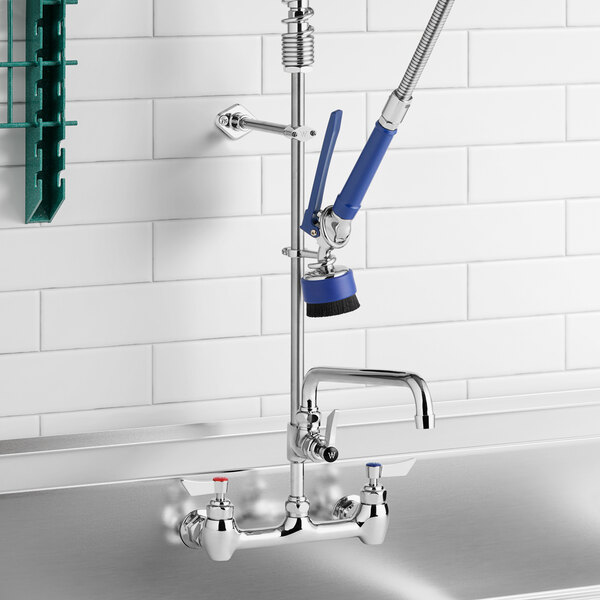

Waterloo 1.15 GPM Pre-Rinse Spray Valve with Black Nylon Scrub Brush

This Waterloo 1.15 GPM pre-rinse spray valve is an excellent choice when you need to replace a broken valve or upgrade an old one! Designed to provide the industry-leading quality you expect, this spray valve has a heavy-duty body with metal construction to prevent leaks and keep up with even fast-paced dishrooms. Plus, it features a black nylon bristle scrub brush attachment to give you an efficient way to attack dirty dishes during the rinsing process!

This spray valve boasts a 1.15 GPM flow rate and 35 degree spray angle to blast away heavy soil deposits and ensure that glassware and dinnerware come out of the dishwasher clean and ready to use. It comes with a hold-down ring so that you can lock the valve into the on position for constant use, and it has a 7/8"-20 UNEF inlet.

Overview

1.15 GPM flow rate

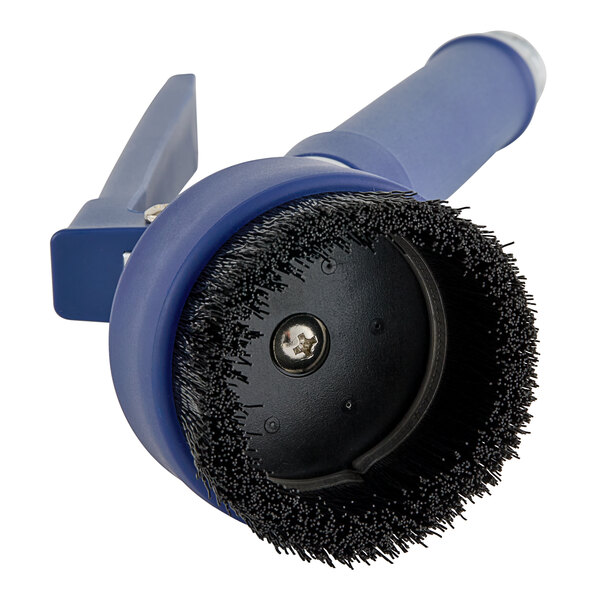

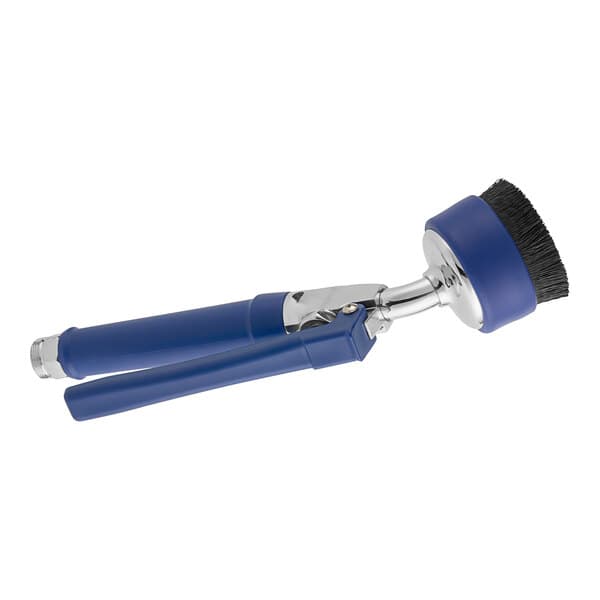

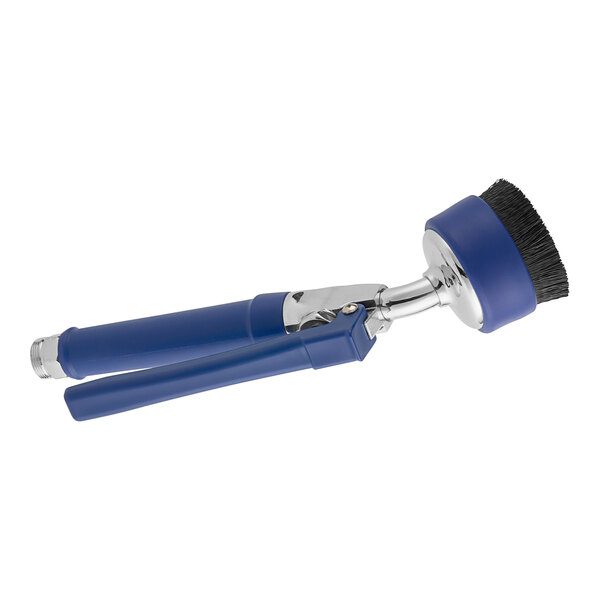

Features a black nylon bristle scrub brush attachment
Fits all Waterloo pre-rinse units

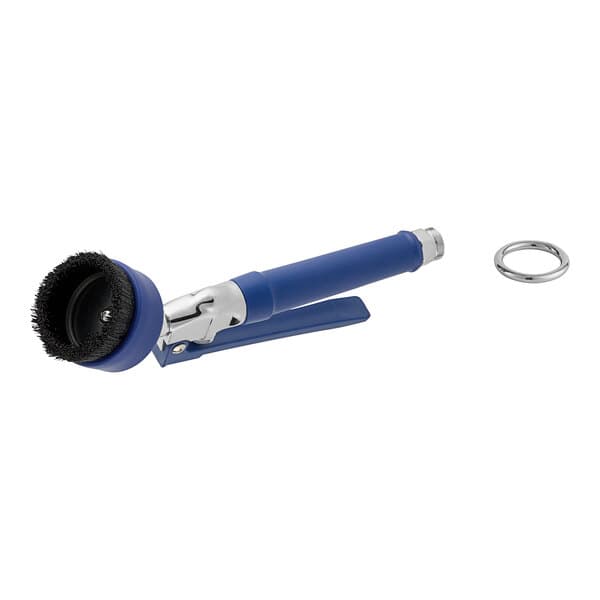

Ergonomic squeeze handle with hold-down ring
Features a 7/8”-20 UNEF inlet

CSA, US and Canada

This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.

NSF Listed

This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Specs

FeaturesASME A112.18.1-2018 / CSA B125.1-18

FeaturesNSF Listed

Flow Rate1.15 GPM

Inlet7/8"-20 UNEF Male Inlet

TypeSpray Valves

Resources & Downloads

Download useful documents and assets for this product.

Replacement Parts

Included parts that allow for proper installation

Item #750PRSVBP
Black Nylon Scrub Brush for
Product Details

Customer Q&A

The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.
There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
