Item #750EFDMHS12BKLF

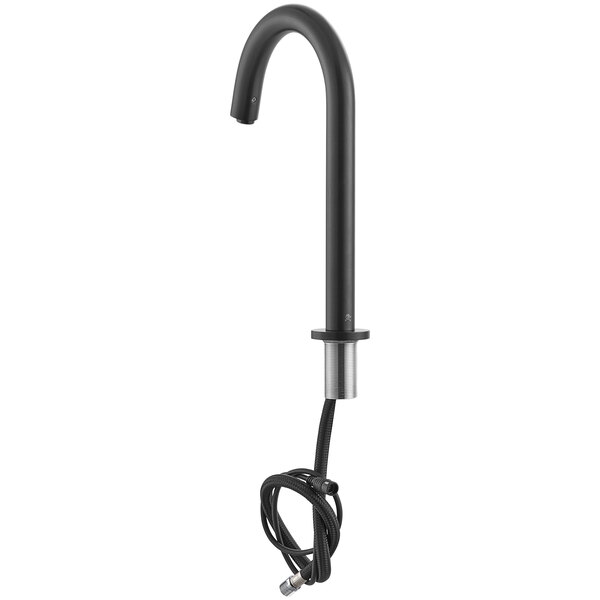

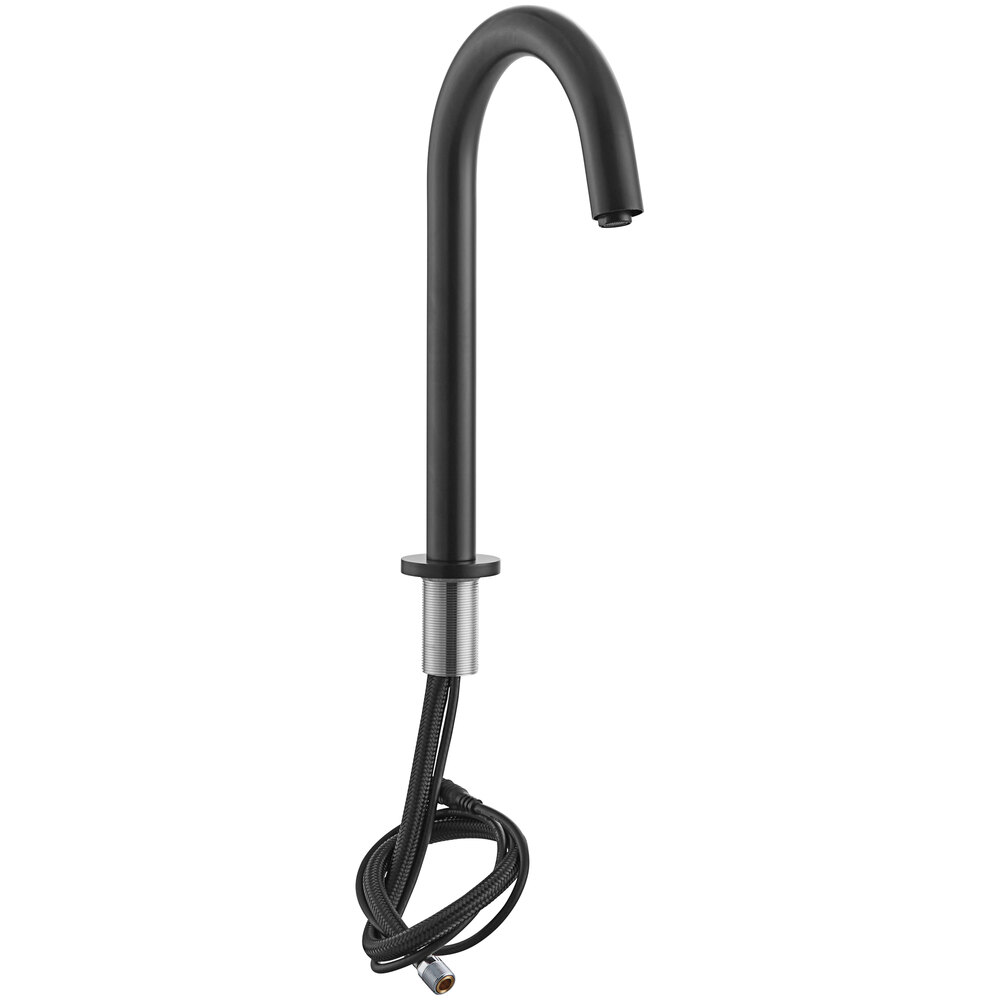

Waterloo Deck-Mount Matte Black Hands-Free Sensor Faucet with 6 1/2" Gooseneck Spout, Concealed Sensor, and 0.5 GPM

This Waterloo deck-mount matte black hands-free sensor faucet is the perfect solution when you need a dependable water fixture for your facility's restrooms and hand-washing areas! It features a 6 1/2" long, angled gooseneck spout on a single hole base with a matte black finish that provides a contemporary and refined look wherever it's installed. The sensor is also concealed so as to be more aesthetically pleasing than a traditional base-mounted sensor.

This unit has an infrared proximity sensor with a 30 second timeout feature and an adjustable range of 1"-6". Because a sensor activates the water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to spread, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.

The AC adapter with a Level VI efficiency rating is included to provide power for the faucet's control module, which installs below the countertop and connects to the faucet with a 44" flexible supply line. Or, you can also use (4) AA batteries if an outlet isn't convenient and to provide backup power in case of an outage. A mixing valve also allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot while still ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.

Waterloo sensor faucets provide the industry-leading quality you expect. With a heavy brass faucet body and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.

Overall Dimensions:
Spout Length: 6 1/2"
Faucet Height: 12 7/16"

Overview

  • 0.5 GPM flow rate

  • Deck-mounted design with a 44" stainless steel supply line

  • (2) 18" stainless steel supply lines use 1/2" NPSM x 3/8" female fittings

  • Solid brass construction with a matte black finish and a concealed sensor

  • Powered by included AC adapter or (4) AA batteries (sold separately)

ADA Compliant

This item meets criteria established by the Americans with Disabilities Act (ADA).

1-15P

This unit comes with a NEMA 1-15P plug.

3/8" Water Connection

This unit comes with a 3/8" water connection for water supply.

Hands-Free/Touchless

This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.

NSF Listed

This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Specs

  • Hose Length44 Inches
  • Spout Length6 1/2 Inches
  • Faucet Height12 7/16 Inches
  • Adjustable Sensor Range1 Inch
  • Adjustable Sensor Range6 Inches
  • Battery TypeAA
  • Default Sensor Range4 Inches
  • Faucet CentersSingle
  • FeaturesADA Compliant
  • FeaturesHands Free
  • FeaturesNSF Listed
  • FinishMatte
  • Flow Rate1/2 GPM
  • IncludedFlex Inlets
  • MaterialBrass
  • Mounting Holes Required1 Mounting Hole
  • Mounting StyleDeck Mounted
  • Plug TypeNEMA 1-15P
  • Power TypeAC Adapter
  • Power TypeBattery
  • Pressure Rating60 PSI
  • Spout Clearance7 15/16 Inches
  • Spout TypeGooseneck
  • Temperature Rating194 Degrees F
  • TypeTouchless Faucets
  • Water Inlet Size3/8 Inches

Features

  • product close up

    Hands-Free Operation

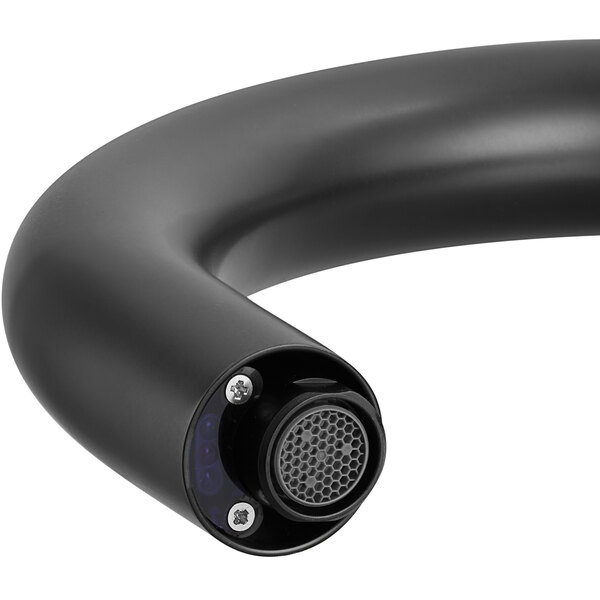

    This unit has an infrared proximity sensor with a 30 second timeout feature and an adjustable range of 1"-6". The hands-free operation reduces the opportunity for germs to spread and also prevents the faucet from running when it's not needed, helping to decrease water usage. Additionally, the sensor is concealed in order to be more aesthetically pleasing than a traditional base-mounted sensor.

  • product close up

    Powered by AC Adapter or Batteries

    The included AC adapter with a Level VI efficiency rating provides power for the faucet's control module. It installs below the countertop and connects to the faucet with a 44" flexible supply line. Alternatively, (4) AA batteries can be used (sold separately) if an outlet isn't convenient or to provide backup power in case of an outage.

  • product close up

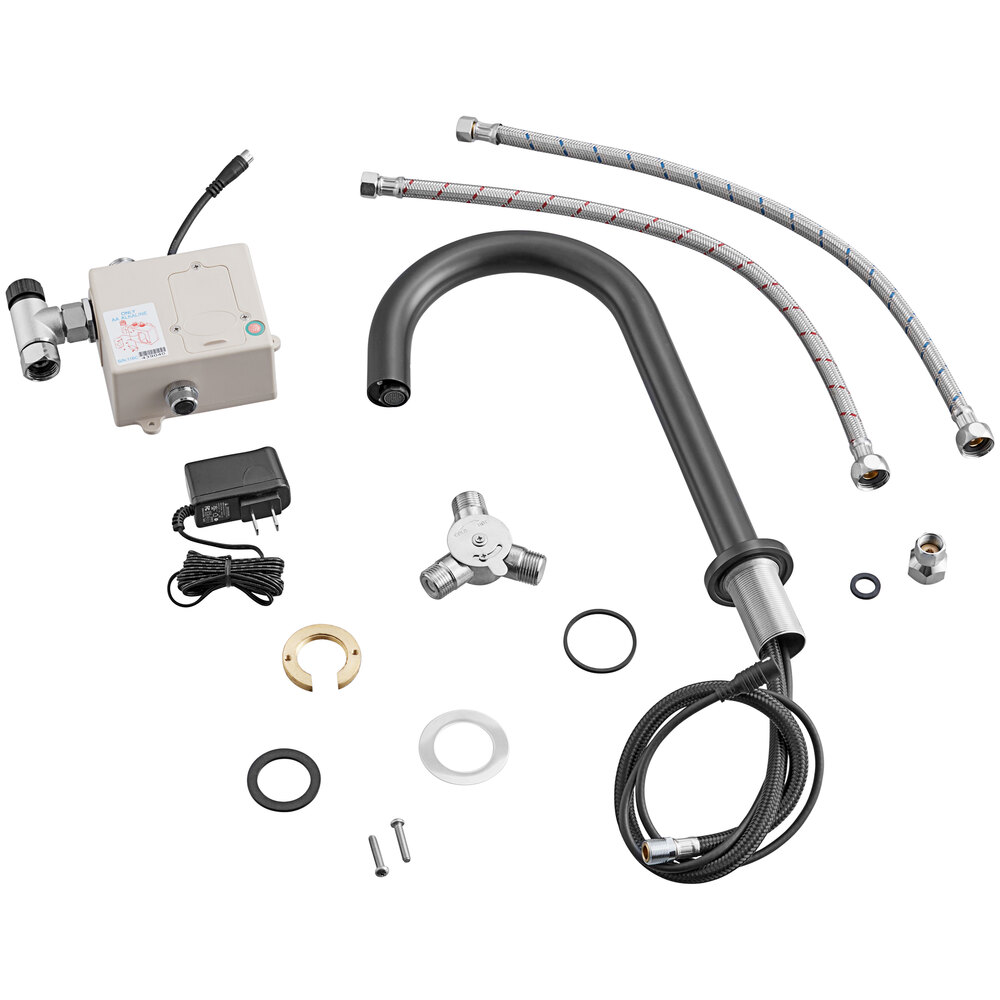

    Included Manual Mixing Valve

    The included manual mixing valve allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot while ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.

Resources & Downloads

Download useful documents and assets for this product.

    Customer Q&A

    • The sensing distance on the faucet is pre-set; however, it can be further adjusted following these easy steps. Begin by pressing and holding the on/off button on the control module for about five seconds. The water will flow for a moment, and the LED light on the sensor will flash on and off as the water flow stops. Release the on/off button and place your hand at the chosen distance from the sensor. The LED light will flash ten times, then stay illuminated on the tenth flash to tell you that the range setting has been saved.

    • This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.

    • There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

    • When installing a faucet, these are some of the most common measurements you’ll need:

      Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

      Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

      Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
