Item #750EFDMHSBZ

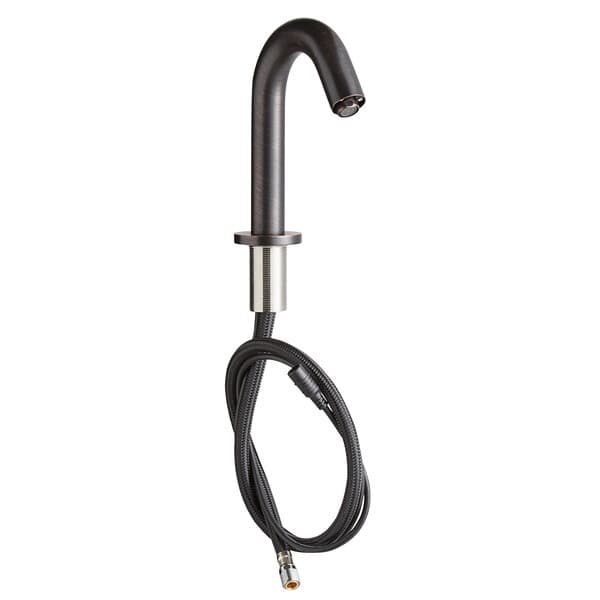

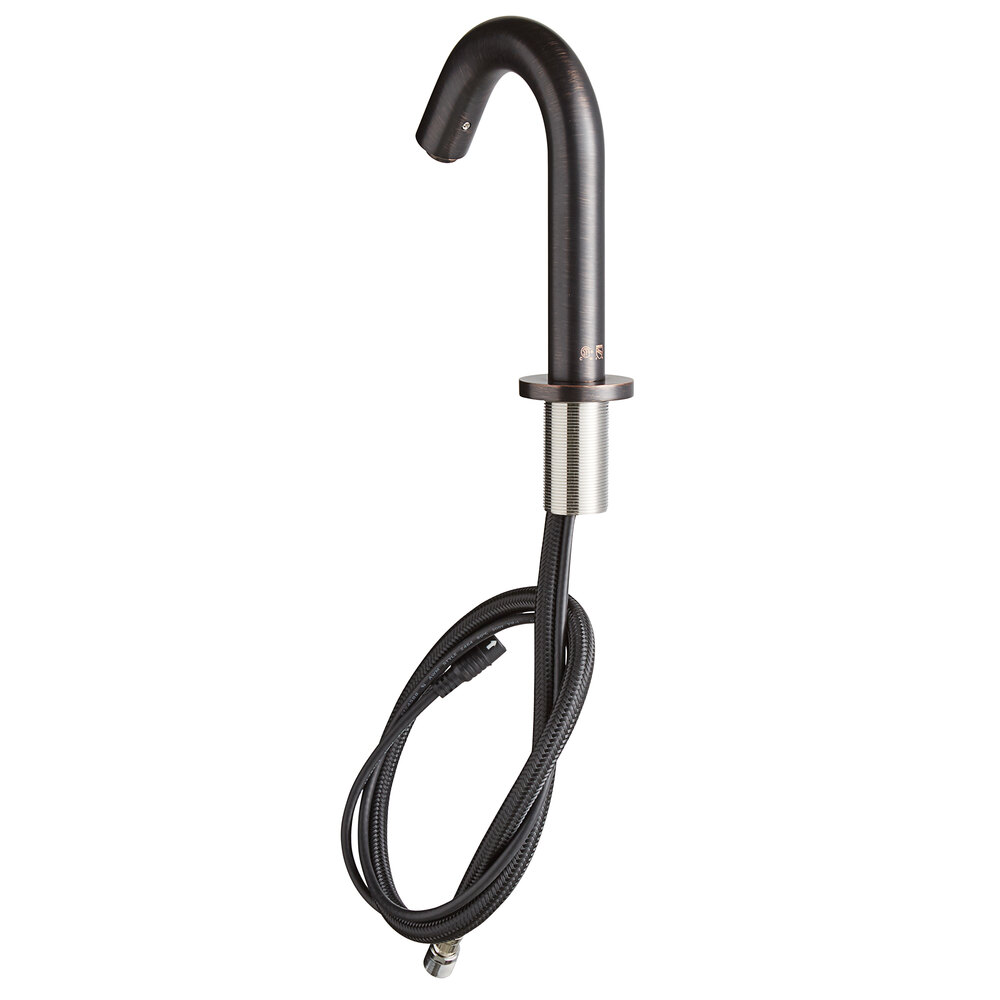

Waterloo Deck Mount Bronze Hands-Free Sensor Faucet with 4 3/4" Gooseneck Spout and Concealed Sensor
This Waterloo deck-mounted bronze hands-free sensor faucet is the perfect solution when you need a dependable water fixture for your facility's restrooms and hand-washing areas! It features a 4 3/4 long, angled gooseneck spout on a single hole base, with a bronze finish that provides a contemporary and refined look wherever it's installed. The sensor is also concealed so as to be more aesthetically pleasing than a traditional base-mounted sensor.
It has an infrared proximity sensor with a 30 second timeout feature and an adjustable range of 1"-6". Because a sensor activates the water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to length, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.
The UL certified AC adapter with a Level VI efficiency rating is included to provide power for the faucet's control module, which installs below the countertop and connects to the faucet with an 18" flexible supply line. Or, you can also use (4) AA batteries if an outlet isn't convenient, and to provide backup power in case of an outage. A mixing valve also allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.
Waterloo sensor faucets provide the industry-leading quality you expect. With a heavy brass faucet body and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.
Overall Dimensions:
Spout Length: 4 3/4"
Faucet Height: 6 3/4"
Faucet Width: 1 1/4"
Overview
1.2 GPM flow rate
Deck-mounted single base, (1) 18" stainless steel supply line to connect module to faucet
Mixing valve, (2) 18" stainless steel supply lines, 1/2" NPSM x 3/8" female fittings
Solid brass construction for long life, bronze finish
Includes AC adapter and control module, concealed sensor
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
1-15P
This unit comes with a NEMA 1-15P plug.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
Hands-Free/Touchless
This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Specs
- Spout Length4 3/4 Inches
- Faucet Width1 1/4 Inches
- Faucet Height6 3/4 Inches
- Adjustable Sensor Range1 Inch
- Adjustable Sensor Range6 Inches
- Battery TypeAA
- Color BadgeColors
- Faucet CentersSingle
- FeaturesADA Compliant
- FeaturesASME A112.18.1-2018 / CSA B125.1-18
- FeaturesHands Free
- FeaturesNSF Listed
- FinishBronze
- Flow Rate1 1/5 GPM
- IncludedFlex Inlets
- MaterialBrass
- Mounting Holes Required1 Mounting Hole
- Mounting StyleDeck Mounted
- Plug TypeNEMA 1-15P
- Power TypeAC Adapter
- Power TypeBattery
- Pressure Rating60 PSI
- Product TypeFaucets
- Spout Clearance3 1/4 Inches
- Spout TypeGooseneck
- Temperature Rating194 Degrees F
- TypeTouchless Faucets
- Water Inlet Size3/8 Inches
Features

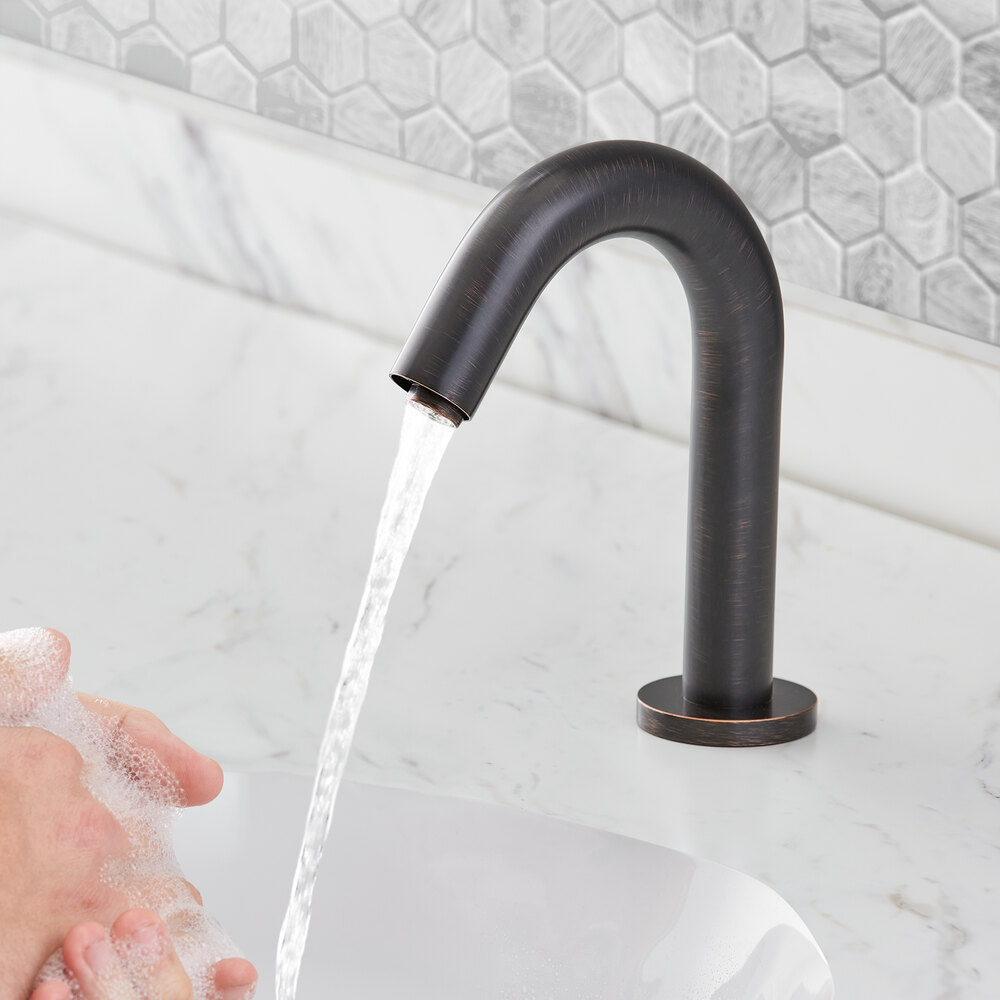

Hands-Free Operation
It has an infrared proximity sensor with a 30 second timeout feature and an adjustable range of 1"-6". Because a sensor activates water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to spread, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.

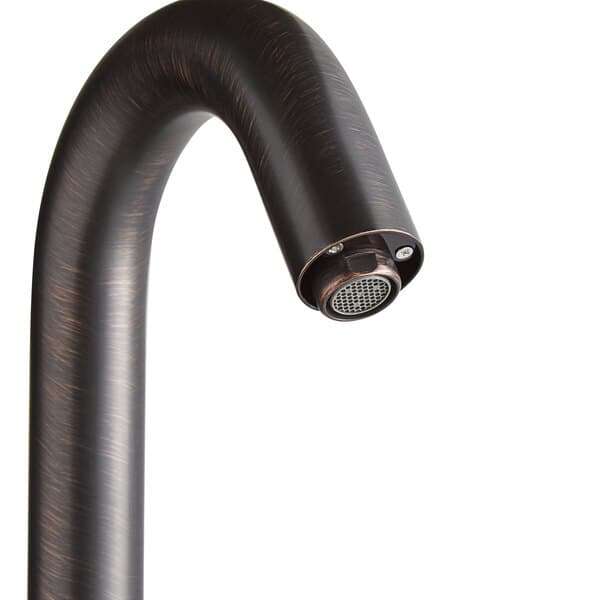

Gooseneck Spout
This faucet comes with a 6 3/4" angled gooseneck spout, and a 1.2 GPM flow rate to provide a soft water flow with minimal splashing for hand washing. A heavy brass body provides excellent durability, while a bronze finish provides an attractive accent.
Easy Installation
The single hole base requires a total of 1 mounting hole to allow easy installation of the faucet inlet. The faucet connects to the control module with an 18" flexible supply line and a sensor cable.
AC Adapter or Battery-Powered
The UL certified AC adapter with a Level VI efficiency rating is included to provide power for the faucet's control module, which installs below the countertop. Or, you can also use (4) AA batteries if an outlet isn't convenient, and to provide backup power in case of an outage.
Manual Mixing Valve Included
A mixing valve also allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.
Industry-Leading Quality, 3-Year Warranty
Waterloo sensor faucets provide the industry-leading quality you expect at a price point that won't break the bank. With a heavy brass faucet body and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.
Resources & Downloads
Download useful documents and assets for this product.

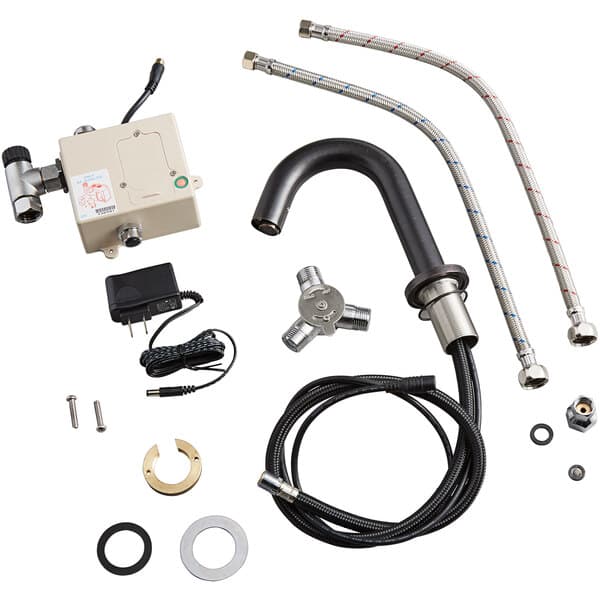

Replacement Parts
Included parts that allow for proper installation
