Item #750EFDMRD
Waterloo Deck-Mounted Round Hands-Free Sensor Faucet with 5 9/16" Straight Spout
This Waterloo deck mounted hands-free sensor faucet is the perfect solution when you need a dependable water fixture for your facility's restrooms and hand-washing areas! It features a 5 9/16" long straight spout, with a chrome-plated finish and an attractive rounded base to provide a contemporary and refined look wherever it's installed.
It has an infrared proximity sensor with a 30 second timeout feature and an adjustable range of 1"-8". Because a sensor activates the water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to spread, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.

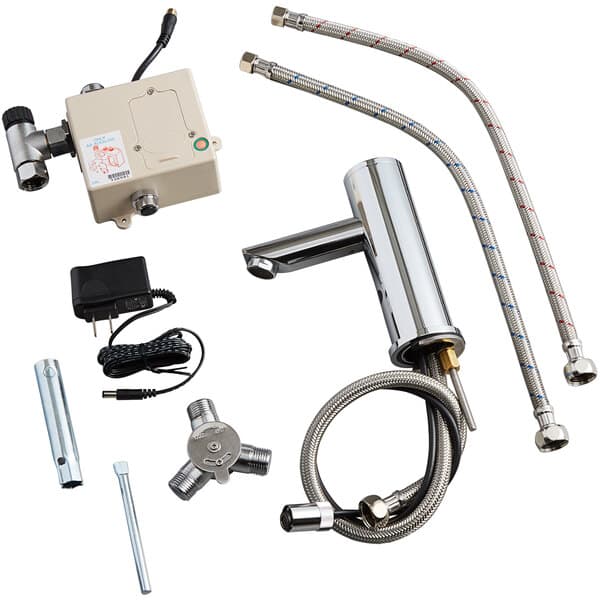

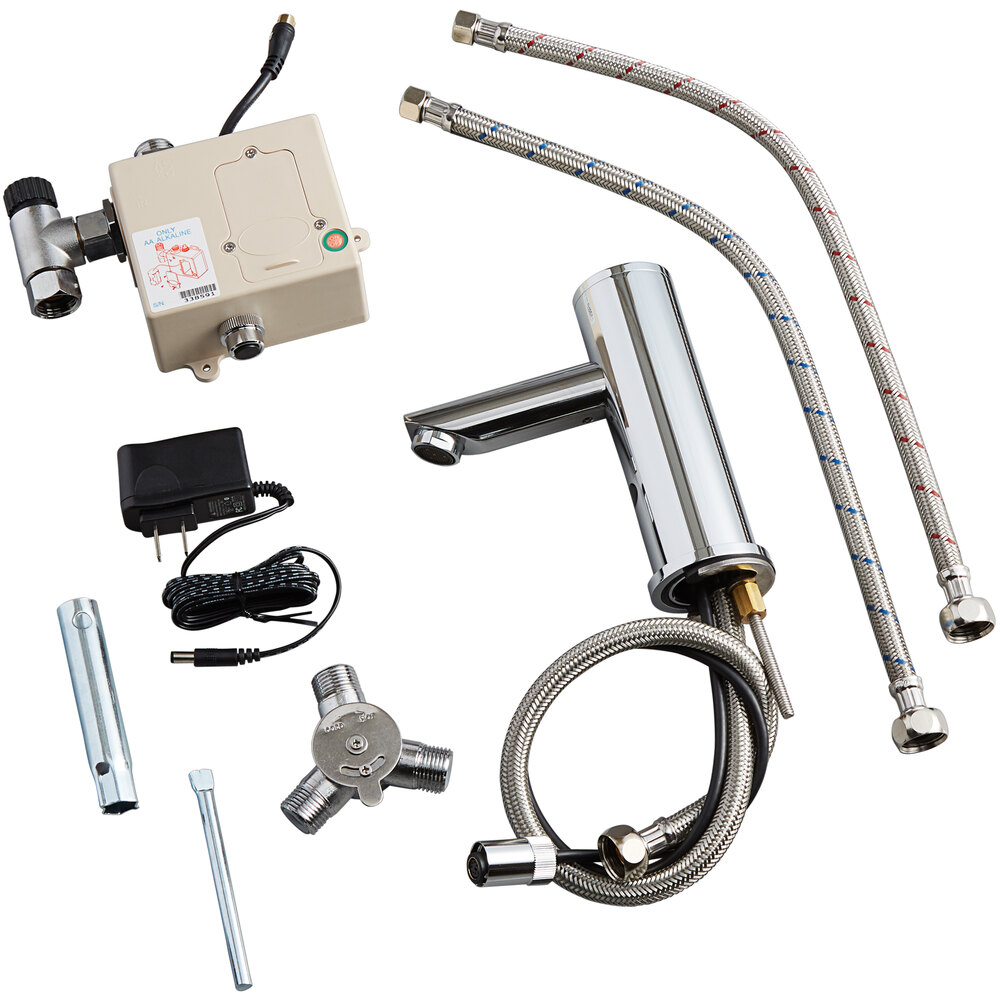

The UL certified AC adapter with a Level VI efficiency rating is included to provide power for the faucet's control module, which installs below the countertop and connects to the faucet with an 18" flexible supply line. Or, you can also use (4) AA batteries if an outlet isn't convenient, and to provide backup power in case of an outage. A mixing valve also allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.
Waterloo sensor faucets provide the industry-leading quality you expect. With heavy chrome-plated brass faucet bodies and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.
Overall Dimensions:
Spout Length: 5 9/16"
Faucet Height: 6 5/16"
Overview
5 9/16" straight spout, 2.2 GPM flow rate
Deck-mounted single base, (1) 18" stainless steel supply line to connect module to faucet
Below-deck manual mixing valve, (2) 18" stainless steel supply lines, 1/2" NPSM female x 3/8" female
Solid chrome-plated brass construction for long life
Includes AC adapter and control module, can operate on batteries
1-15P
This unit comes with a NEMA 1-15P plug.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
Hands-Free/Touchless
This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Specs
- Spout Length5 9/16 Inches
- Faucet Height6 5/16 Inches
- Adjustable Sensor Range1 Inch
- Adjustable Sensor Range8 Inches
- Battery TypeAA
- Faucet CentersSingle
- FeaturesADA Compliant
- FeaturesASME A112.18.1-2018 / CSA B125.1-18
- FeaturesHands Free
- FeaturesNSF Listed
- FinishChrome
- Flow Rate2 1/5 GPM
- IncludedFlex Inlets
- MaterialBrass
- Mounting Holes Required1 Mounting Hole
- Mounting StyleDeck Mounted
- Plug TypeNEMA 1-15P
- Power TypeAC Adapter
- Power TypeBattery
- Pressure Rating60 PSI
- Product TypeFaucets
- Spout Clearance4 3/8 Inches
- Spout TypeCast
- Temperature Rating194 Degrees F
- TypeTouchless Faucets
- Water Inlet Size3/8 Inches
Features

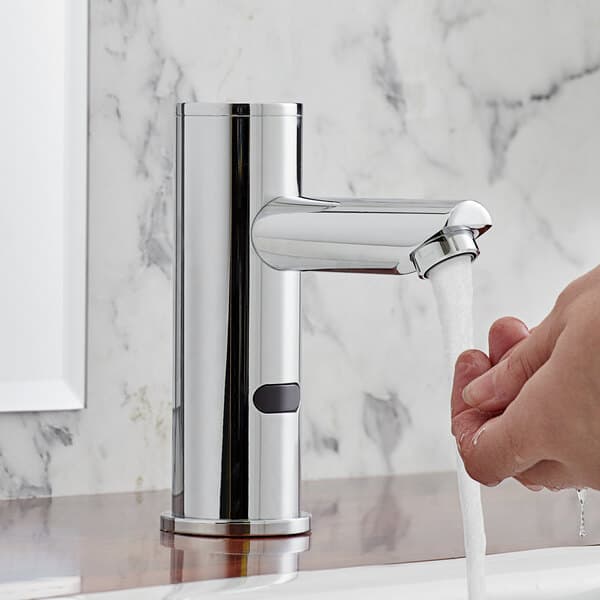

Hands-Free Operation
It has an infrared proximity sensor with a 30 second timeout feature and an adjustable range of 1"-8". Because a sensor activates water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to spread, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.

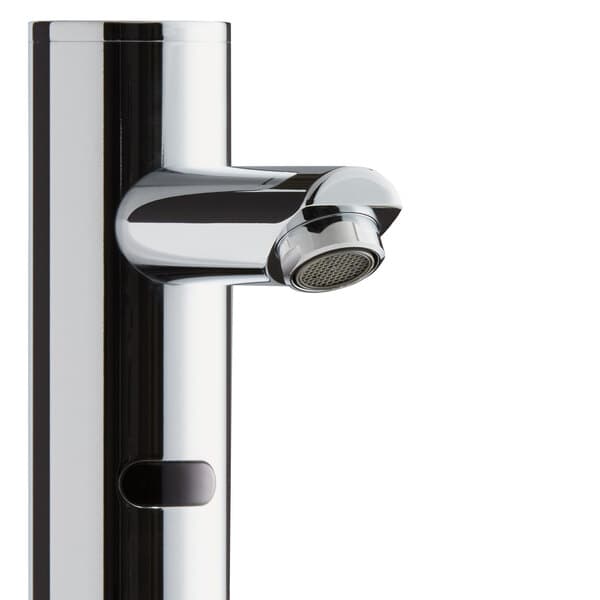

5 9/16" Long Straight Spout
This faucet comes with a 5 9/16" long straight spout, and a 2.2 GPM flow rate to provide a soft water flow with minimal splashing for hand washing. A heavy brass body provides excellent durability, while a chrome-plated finish provides an attractive accent.
Easy Installation
The single hole base requires a total of 1 mounting hole to allow easy installation of the faucet inlet. The faucet connects to the control module with an 18" flexible supply line and a sensor cable.
AC Adapter or Battery-Powered
The UL certified AC adapter with a Level VI efficiency rating is included to provide power for the faucet's control module, which installs below the countertop. Or, you can also use (4) AA batteries if an outlet isn't convenient, and to provide backup power in case of an outage.
Manual Mixing Valve Included
A mixing valve also allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.
Industry-Leading Quality, 3-Year Warranty
Waterloo sensor faucets provide the industry-leading quality you expect at a price point that won't break the bank. With a heavy brass faucet body and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.
