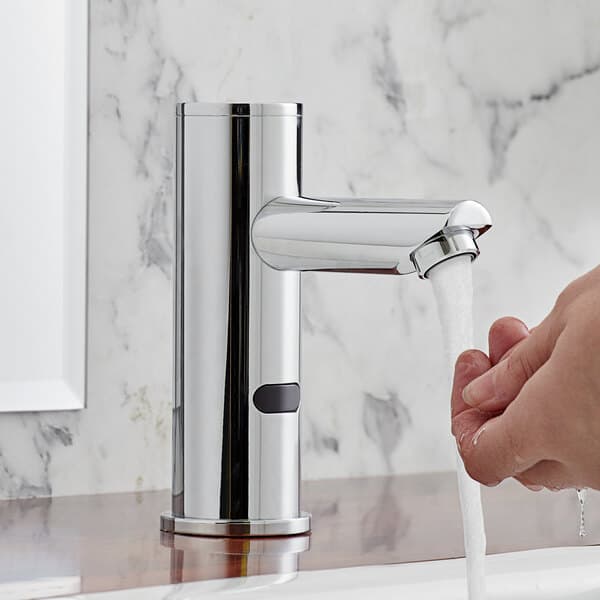

A hand washing under a Waterloo hands-free sensor faucet.

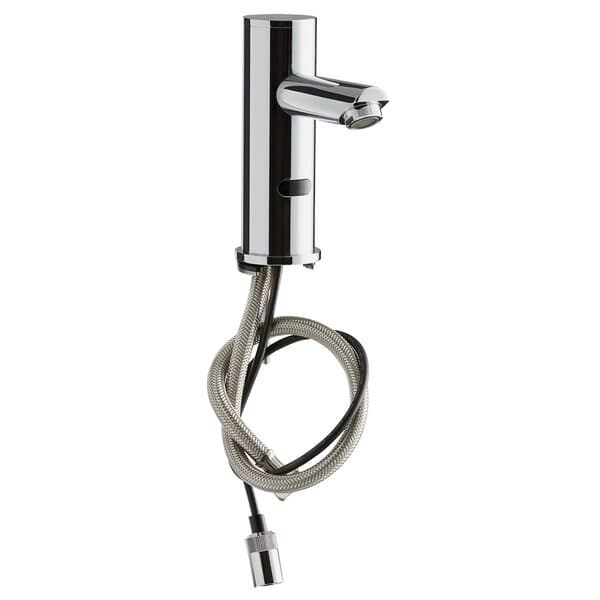

A silver Waterloo hands-free electronic faucet with a straight metal spout.

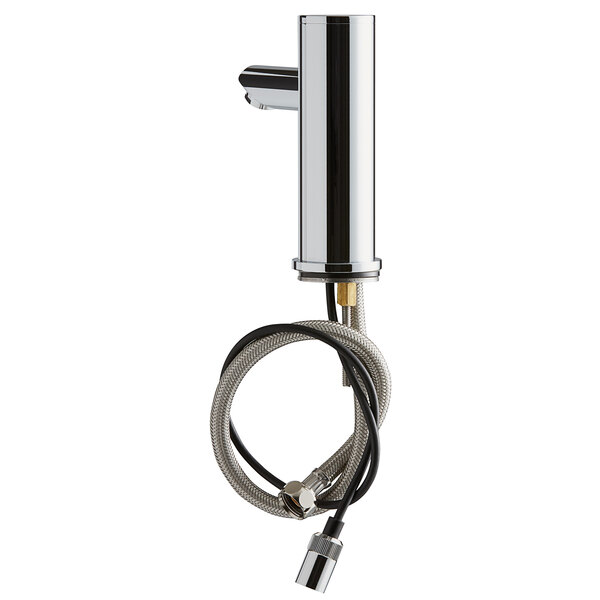

A silver Waterloo hands-free sensor faucet with a straight spout.

A chrome Waterloo hands-free sensor faucet with a black handle.

A Waterloo hands-free sensor faucet with a straight spout.

Item #750EFDMRDLF

Waterloo Deck-Mount Round Hands-Free Sensor Faucet with 5 9/16" Straight Spout and 0.5 GPM

This Waterloo deck-mount hands-free sensor faucet is the perfect solution when you need a dependable water fixture for your facility's restrooms and hand-washing areas! It features a 5 9/16" long straight spout, with a chrome-plated finish and an attractive rounded base to provide a contemporary and refined look wherever it's installed.

This unit has an infrared proximity sensor with a 30 second timeout feature and an adjustable range of 1"-8". Because a sensor activates the water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to spread, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.

The AC adapter with a Level VI efficiency rating is included to provide power for the faucet's control module, which installs below the countertop and connects to the faucet with a 24" flexible supply line. Or, you can also use (4) AA batteries if an outlet isn't convenient and to provide backup power in case of an outage. A mixing valve also allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot while still ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.

Waterloo sensor faucets provide the industry-leading quality you expect. With heavy chrome-plated brass faucet bodies and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.

Overall Dimensions:
Spout Length: 5 9/16"
Faucet Height: 6 5/16"

Overview

5 9/16" straight spout and 0.5 GPM flow rate
Deck-mount with a 24" supply line
(2) 18" stainless steel supply lines use 1/2" NPSM x 3/8" female fittings
Solid chrome-plated brass construction for long life
Includes AC adapter and control module, can operate on batteries

1-15P

This unit comes with a NEMA 1-15P plug.

ADA Compliant

This item meets criteria established by the Americans with Disabilities Act (ADA).

3/8" Water Connection

This unit comes with a 3/8" water connection for water supply.

Hands-Free/Touchless

This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.

NSF Listed

This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Specs

Hose Length24 Inches

Spout Length5 9/16 Inches

Faucet Height6 5/16 Inches

Adjustable Sensor Range1 Inch

Adjustable Sensor Range8 Inches

Battery TypeAA

Default Sensor Range1 Inch

Default Sensor Range8 Inches

Faucet CentersSingle

FeaturesADA Compliant

FeaturesHands Free

FeaturesNSF Listed

FinishChrome

Flow Rate1/2 GPM

IncludedFlex Inlets

MaterialBrass

Mounting Holes Required1 Mounting Hole

Mounting StyleDeck Mounted

Plug TypeNEMA 1-15P

Power TypeAC Adapter

Power TypeBattery

Pressure Rating60 PSI

Spout Clearance4 3/8 Inches

Spout TypeCast

Temperature Rating194 Degrees F

TypeTouchless Faucets

Water Inlet Size3/8 Inches

Resources & Downloads

Download useful documents and assets for this product.

Replacement Parts

Included parts that allow for proper installation

View all Replacement Parts

Customer Q&A

The sensing distance on the faucet is pre-set; however, it can be further adjusted following these easy steps. Begin by pressing and holding the on/off button on the control module for about five seconds. The water will flow for a moment, and the LED light on the sensor will flash on and off as the water flow stops. Release the on/off button and place your hand at the chosen distance from the sensor. The LED light will flash ten times, then stay illuminated on the tenth flash to tell you that the range setting has been saved.
This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.
There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
