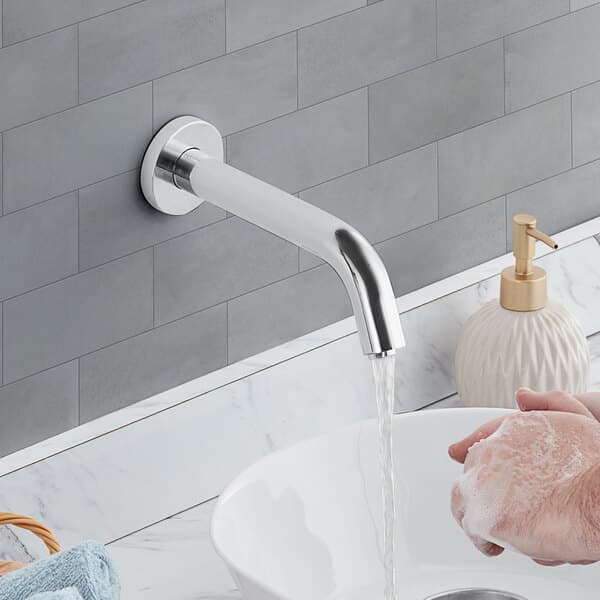

A person washing their hands under a Waterloo wall-mount hands-free sensor faucet.

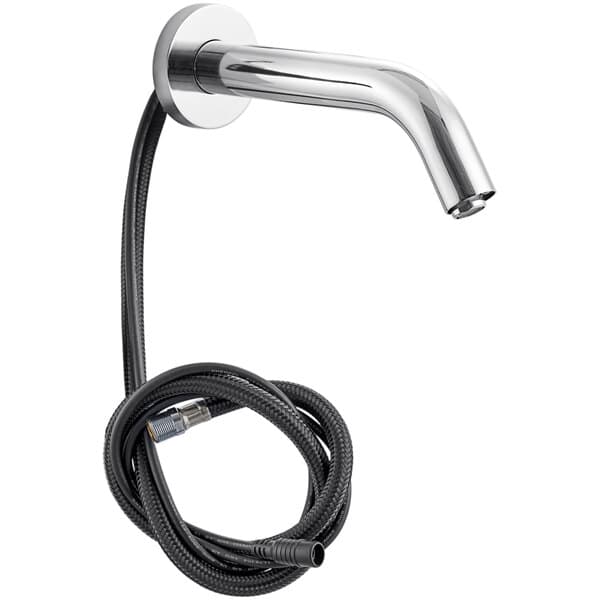

A Waterloo hands-free sensor faucet with a hose.

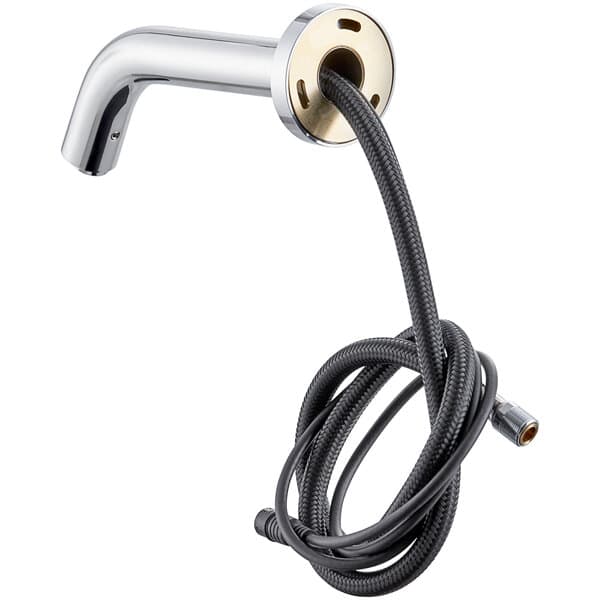

A Waterloo chrome hands-free sensor faucet with a hose attached.

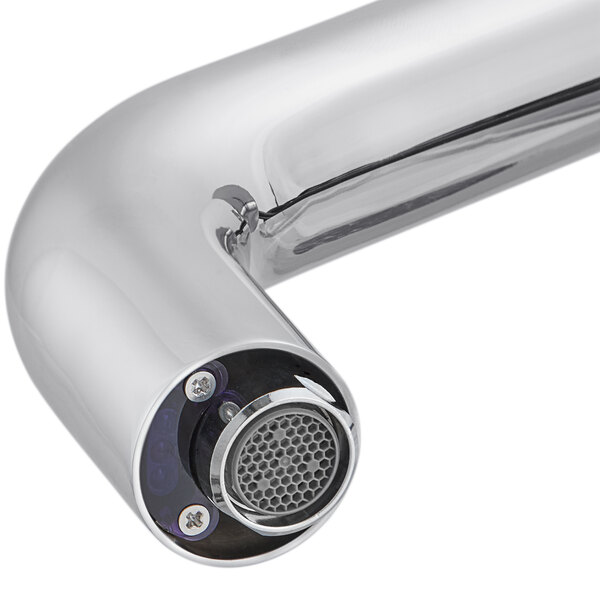

A close up of a Waterloo chrome hands-free sensor faucet with black sensor.

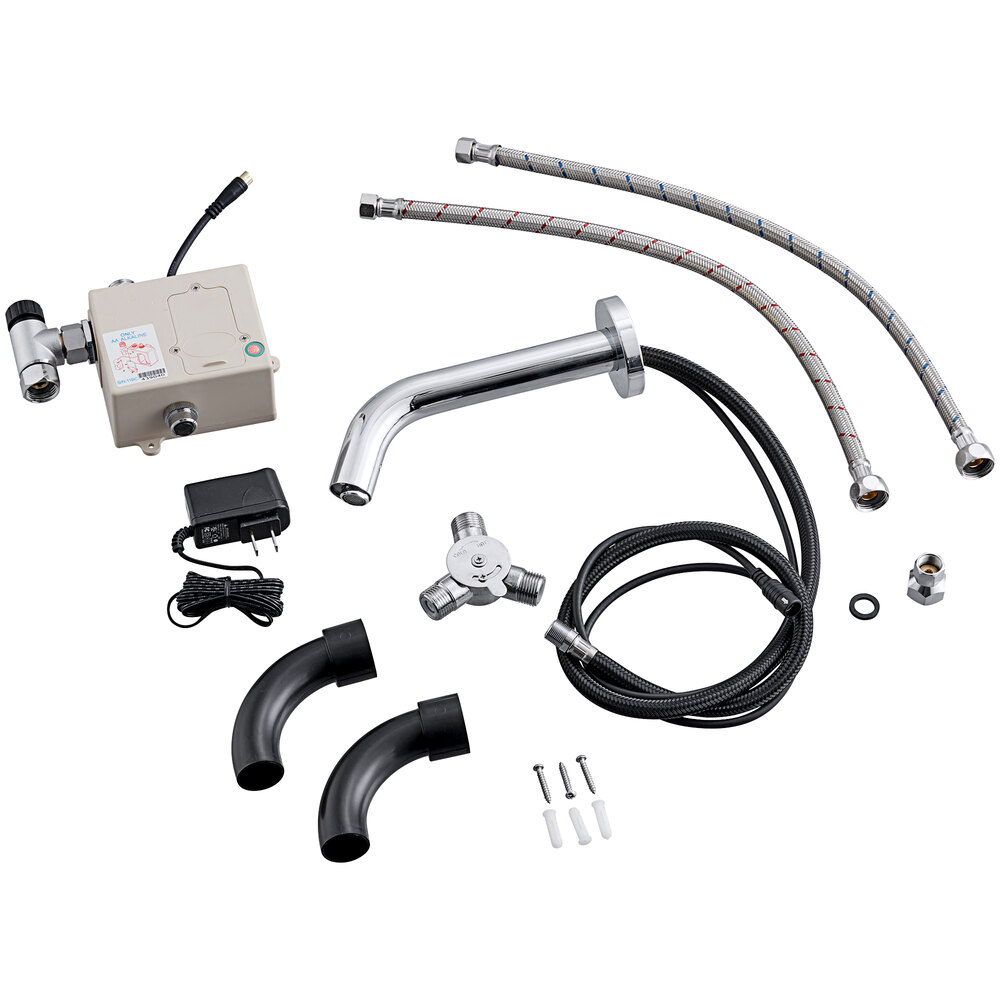

The Waterloo Wall-Mount Hands-Free Sensor Faucet with spout and other accessories on a white background.

Item #750EFWMSHSLF

Waterloo Wall-Mount Hands-Free Sensor Faucet with 7 3/4" Spout and 0.5 GPM

This Waterloo wall-mount hands-free sensor faucet is the perfect solution when you need a dependable water fixture for your facility's restrooms and hand-washing areas! It features a 7 3/4" spout and a chrome-plated finish to provide a contemporary and refined look wherever it's installed. This faucet includes a below-deck mixing valve and a 44" flexible supply line.

This unit has an infrared proximity sensor with an adjustable sensor range of 1"-6". Because a sensor activates water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to spread, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill. Additionally, the sensor comes with a 30 second timeout feature to prevent sink overflow and ensure water is being used only as needed. This faucet is powered by (4) AA batteries (sold separately), or you can use the optional UL certified AC wall adapter with a level VI efficiency rating. The control box and sensor cable install beneath the countertop for a clean presentation, with easy access when you need to service the faucet.

Waterloo sensor faucets provide the industry-leading quality you expect. With a heavy brass faucet body and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.

Overall Dimensions:
Spout Length: 7 3/4"

Overview

7 3/4" spout and 0.5 GPM flow rate
Wall-mount design with a single hole base
Below-deck mixing valve and 44" supply line
Solid chrome-plated brass construction for long life
Includes AC adapter

3/8" Water Connection

This unit comes with a 3/8" water connection for water supply.

ADA Compliant

This item meets criteria established by the Americans with Disabilities Act (ADA).

1-15P

This unit comes with a NEMA 1-15P plug.

Hands-Free/Touchless

This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.

NSF Listed

This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Specs

Hose Length44 Inches

Spout Length7 3/4 Inches

Adjustable Sensor Range1 Inch

Adjustable Sensor Range6 Inches

Battery TypeAA

Default Sensor Range4 Inches

Faucet CentersSingle

FeaturesADA Compliant

FeaturesHands Free

FeaturesMassachusetts Accepted Plumbing Product

FeaturesNSF Listed

FinishChrome

Flow Rate1/2 GPM

IncludedFlex Inlets

MaterialBrass

Mounting Holes Required1 Mounting Hole

Mounting StyleWall Mounted

Plug TypeNEMA 1-15P

Power TypeAC Adapter

Power TypeBattery

Pressure Rating60 PSI

Spout Clearance1 1/16 Inches

Spout TypeCast

Temperature Rating194 Degrees F

TypeTouchless Faucets

Water Inlet Size3/8 Inches

Resources & Downloads

Download useful documents and assets for this product.

Replacement Parts

Included parts that allow for proper installation

View all Replacement Parts

Customer Q&A

The sensing distance on the faucet is pre-set; however, it can be further adjusted following these easy steps. Begin by pressing and holding the on/off button on the control module for about five seconds. The water will flow for a moment, and the LED light on the sensor will flash on and off as the water flow stops. Release the on/off button and place your hand at the chosen distance from the sensor. The LED light will flash ten times, then stay illuminated on the tenth flash to tell you that the range setting has been saved.
This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.
There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
