Item #750FW815DJ

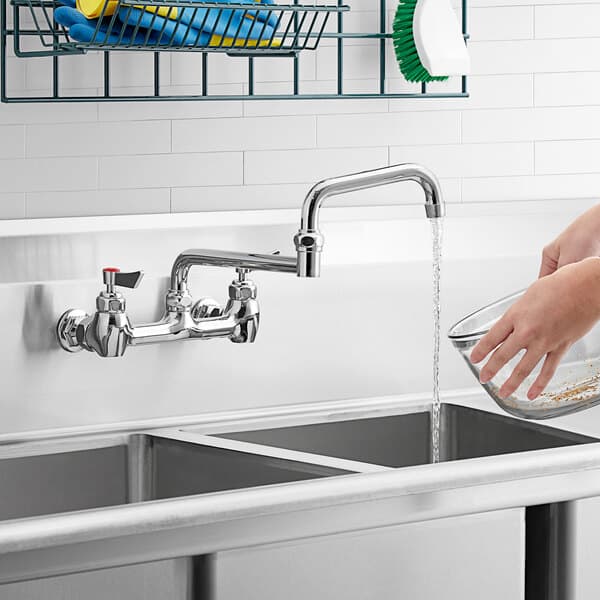

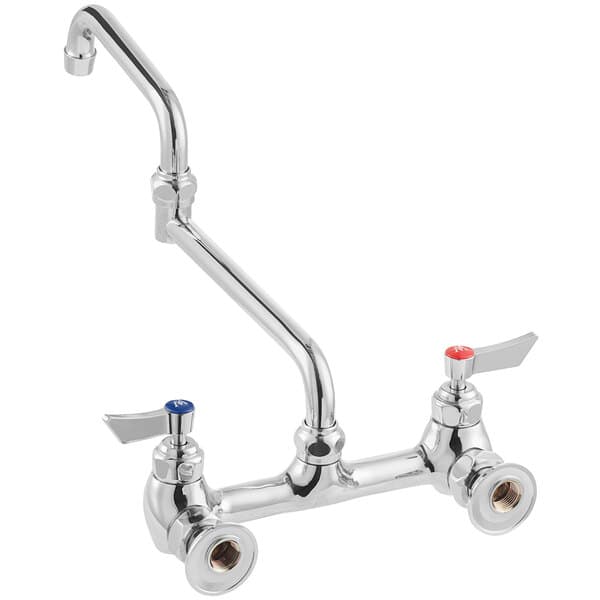

Waterloo Wall-Mounted Faucet with 8" Centers and 15" Double-Jointed Swing Spout

This Waterloo wall-mounted faucet is the perfect solution when you need a dependable water fixture in your facility! Waterloo faucets provide the industry-leading quality you expect. With heavy chrome-plated brass faucet bodies, ceramic cartridges engineered for durability, and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.

This faucet features a 15" long double-jointed swing spout that gives greater range of motion than a standard swing nozzle, with the added benefit of allowing you to fold it out of the way to accommodate large, bulky items. A 2 GPM aerator provides a consistent flow rate and minimal splashing. It boasts a set of 8" adjustable centers, while the wall-mounted design is easy to install with 1/2" NPT inlets.

This faucet uses ceramic cartridges, which provide a much lower fail rate than the compression cartridges widely used in the industry. In this design, 2 ceramic discs fit together to create a watertight seal when closed. This removes the need for a rubber seat washer, which is one of the most frequently replaced parts on a faucet. The sturdy lever handle design makes it easy to turn the water flow off and on.

Overall Dimensions:
Spout Length: 15"
Faucet Height: 7 3/4"

Overview

  • 15" double-jointed swing spout with 2 GPM aerator

  • 8" adjustable centers, 1/2" NPT inlets

  • Temperature rating 40 - 180 degrees Fahrenheit

  • Heavy-duty chrome-plated brass construction

  • Leak-resistant 1/4 turn ceramic cartridges with check valves

CSA, US and Canada

This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.

NSF Listed

This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Specs

  • Spout Length 15 Inches
  • Faucet Height 7 3/4 Inches
  • Cartridge Type Ceramic
  • Faucet Centers 8 Inches
  • Features ASME A112.18.1-2018 / CSA B125.1-18
  • Features California AB100 Compliant
  • Features NSF/ANSI 372
  • Features NSF/ANSI 61
  • Finish Chrome
  • Flow Rate 2 GPM
  • Handle Type Lever
  • Material Brass
  • Mounting Style Wall Mounted
  • Mounting Type Adjustable
  • Spout Clearance 5 11/25 Inches
  • Spout Type Double Jointed
  • Temperature Rating 180 Degrees Fahrenheit
  • Temperature Rating 40 Degrees Fahrenheit
  • Type Faucets
  • Water Inlet Size 1/2 Inches

Features
