Item #750GFN10

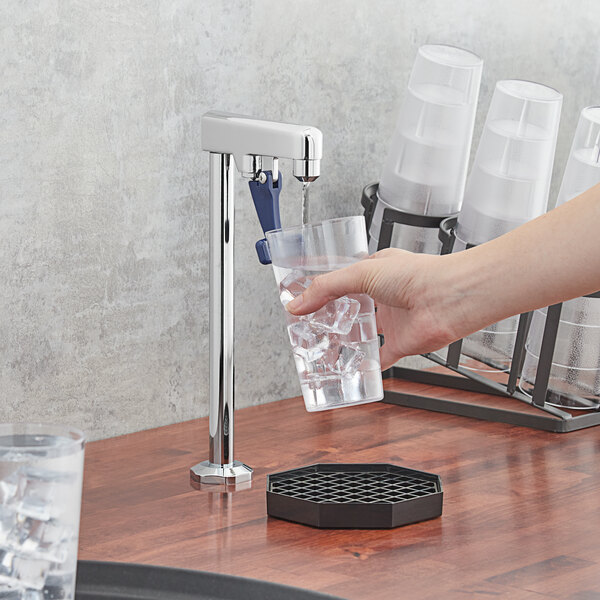

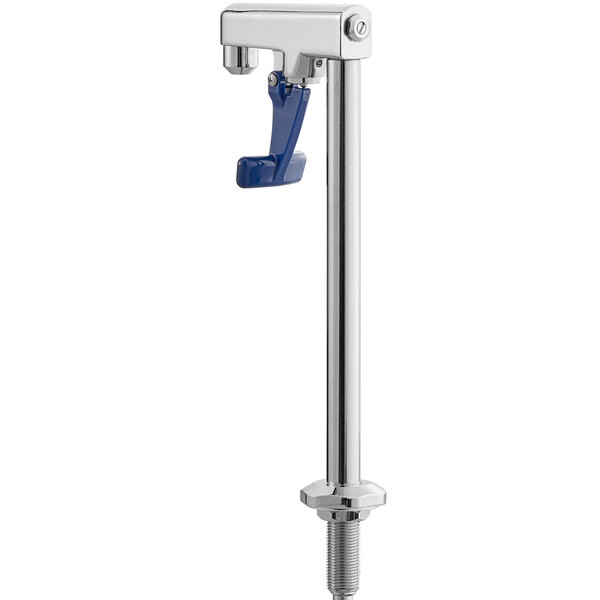

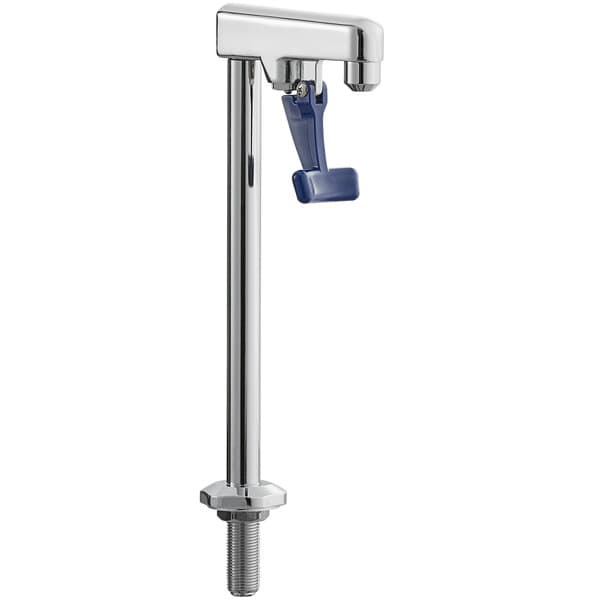

Waterloo 10" Countertop Glass Filler

This Waterloo countertop glass filler is the perfect solution when you need a dedicated area for filling cups with fresh, clean drinking water! Providing 10" of clearance, it boasts plenty of room to accommodate all kinds of glassware, while its deck-mounted design and single hole base make it easy to install. With a dedicated glass filler, you can also give your waitstaff more flexibility by placing it in the most convenient location for your workflow.

An intuitive and familiar lever design makes it easy to use, too - just push the cup back against the lever and it will dispense from the nozzle. It's a great way to improve workflow and ensure all of your customers get a glass of clean, refreshing water. It installs using a 1/2" NPT male inlet. It requires a 7/8" round hole for installation, and works on countertops up to 2" thick.

Overall Dimensions:
Spout Length: 3 7/8"
Faucet Height: 12"

Overview

  • 10" of clearance, perfect for filling water glasses and pitchers

  • Flow rate of 1.2 GPM and 60 PSI

  • Single hole base

  • 1/2" NPT inlet

  • Rough-in: 7/8" round hole, maximum counter thickness: 2"

NSF/ANSI 61 & 372

This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

CSA_C_US

This item meets the standards imposed by the Canadian Standards Association (CSA) for use in the United States of America and Canada.

NSF Listed

This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

Specs

  • Spout Length 3 7/8 Inches
  • Faucet Height 12 Inches
  • Compliances California AB100 Compliant
  • Compliances Commonwealth of Massachusetts
  • Compliances NSF/ANSI 372
  • Compliances NSF/ANSI 61
  • Faucet Centers Single
  • Features NSF Listed
  • Flow Rate 1 1/5 GPM
  • Installation Type Deck Mounted
  • Material Chrome-Plated Brass
  • Number of Faucets 1 Faucet
  • Pressure Rating 60 PSI
  • Spout Clearance 10 Inches
  • Style Push Back
  • Type Glass Fillers
  • Water Inlet Size 1/2 Inches
