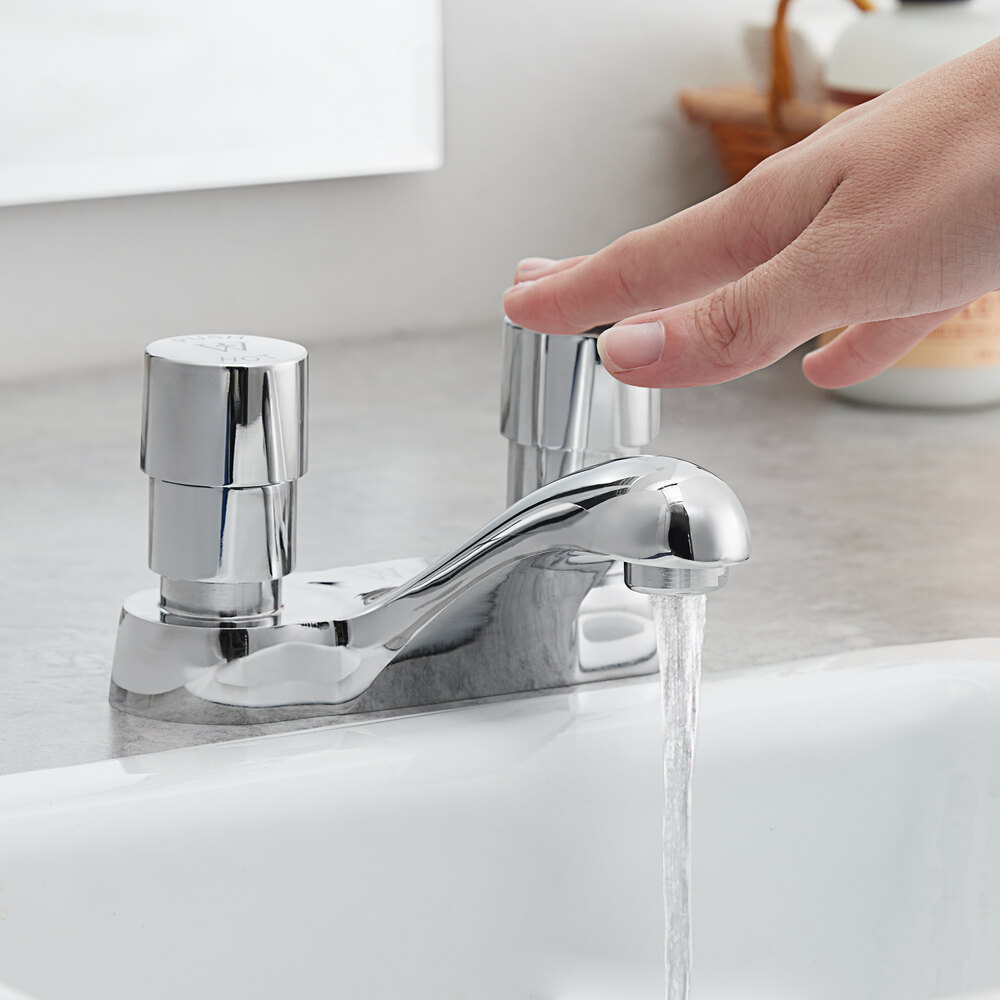

A hand pressing a Waterloo deck-mounted metering faucet over a sink.

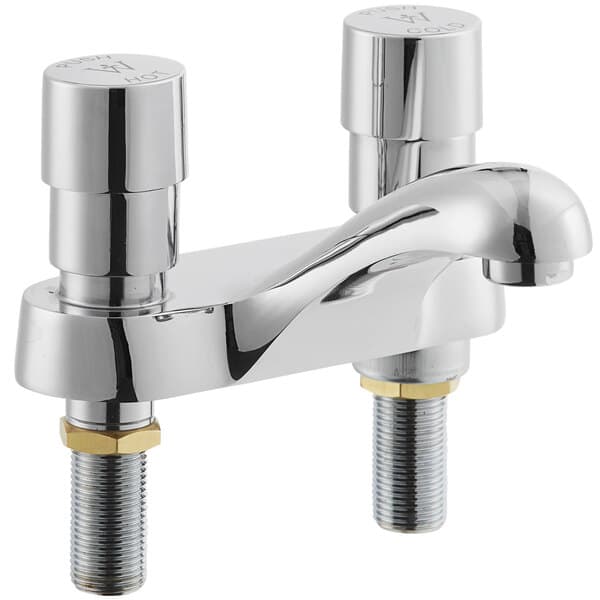

A close up of a Waterloo deck-mounted metering faucet with two handles and brass taps on a white background.

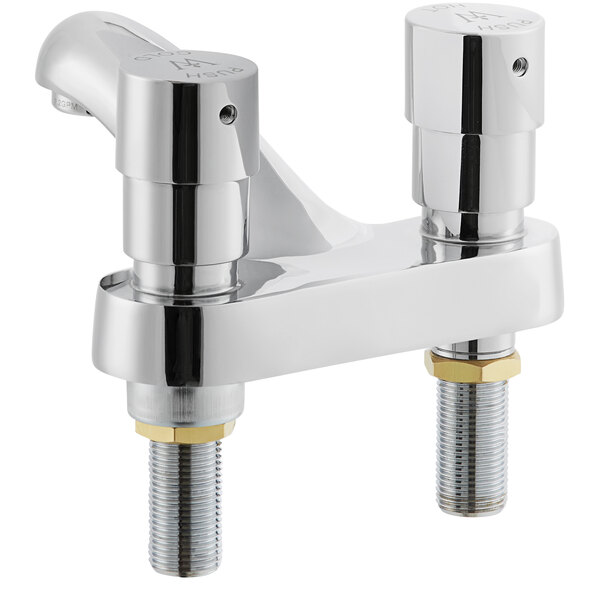

A close-up of a Waterloo deck-mounted metering faucet with two handles.

Item #750MFD4

Waterloo Deck-Mounted Metering Faucet with 4" Centers

This Waterloo deck-mounted metering faucet is a great way to regulate water use in your facility! With its push-button handles, this faucet releases a measured amount of water before shutting off, which prevents waste and accidentally leaving the water running. Waterloo faucets provide the industry-leading quality you expect. With heavy chrome-plated brass faucet bodies, cartridges engineered for durability, and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.

This faucet comes standard with a pre-set water run time of 8-seconds, but is easily adjustable. Turn the stem left to shorten the amount of time the valve stays open, or turn the stem right to lengthen it. Once you set the desired run time, place the cap back on the stem, tighten the set screw, then replace the temperature indicator button. It boasts a set of 4" centers with 1/2" NPS inlets, and the deck-mounted design makes it easy to install. This model also features push-button metering cartridges to regulate the water flow.

Overall Dimensions:
Spout Length: 4 3/8"
Faucet Height: 3 5/16"
Faucet Width: 6"

Overview

4" spout, 2 GPM flow rate
Deck-mounted, 4" centers with 1/2" NPS inlets
Temperature rating 40 - 180 degrees Fahrenheit
Heavy-duty chrome-plated brass construction

CSA, US and Canada

This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.

1/2" Water Connection

This unit comes with a 1/2" water connection for water supply.

NSF Listed

This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Specs

Spout Length4 3/8 Inches

Faucet Width6 Inches

Faucet Height3 5/16 Inches

Cartridge TypeMetering

Faucet Centers4 Inches

FeaturesASME A112.18.1-2018 / CSA B125.1-18

FeaturesNSF Listed

FinishChrome

Flow Rate2 GPM

Handle TypePush

MaterialBrass

Mounting StyleDeck Mounted

Spout Clearance1 13/16 Inches

Spout TypeCast

Temperature Rating180 Degrees F

TypeFaucets

Water Inlet Size1/2 Inches

Features

Adjustable Run Time
This faucet comes standard with a pre-set water run time of 8-seconds and is easily adjustable. Turn the stem left to shorten the amount of time the valve stays open, or turn the stem right to lengthen it. Once you set the desired run time, place the cap back on the stem, tighten the set screw, then replace the temperature indicator button.
Deck-Mounted Design
This Waterloo faucet boasts a set of 4" centers with 1/2" NPS inlets, and the deck-mounted design makes it easy to install. This model also features push-button metering cartridges to regulate the water flow. This is the perfect faucet to meet your custom needs.

Resources & Downloads

Download useful documents and assets for this product.

Customer Q&A

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.
There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
This product cannot be shipped to Canada.
When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
For both wall and deck mounted faucets, installation kits are sold separately. Check the Works With items to find the proper installation kits and parts!
