750EFDMCDP4SS

Item #750EFDMCDP4SS

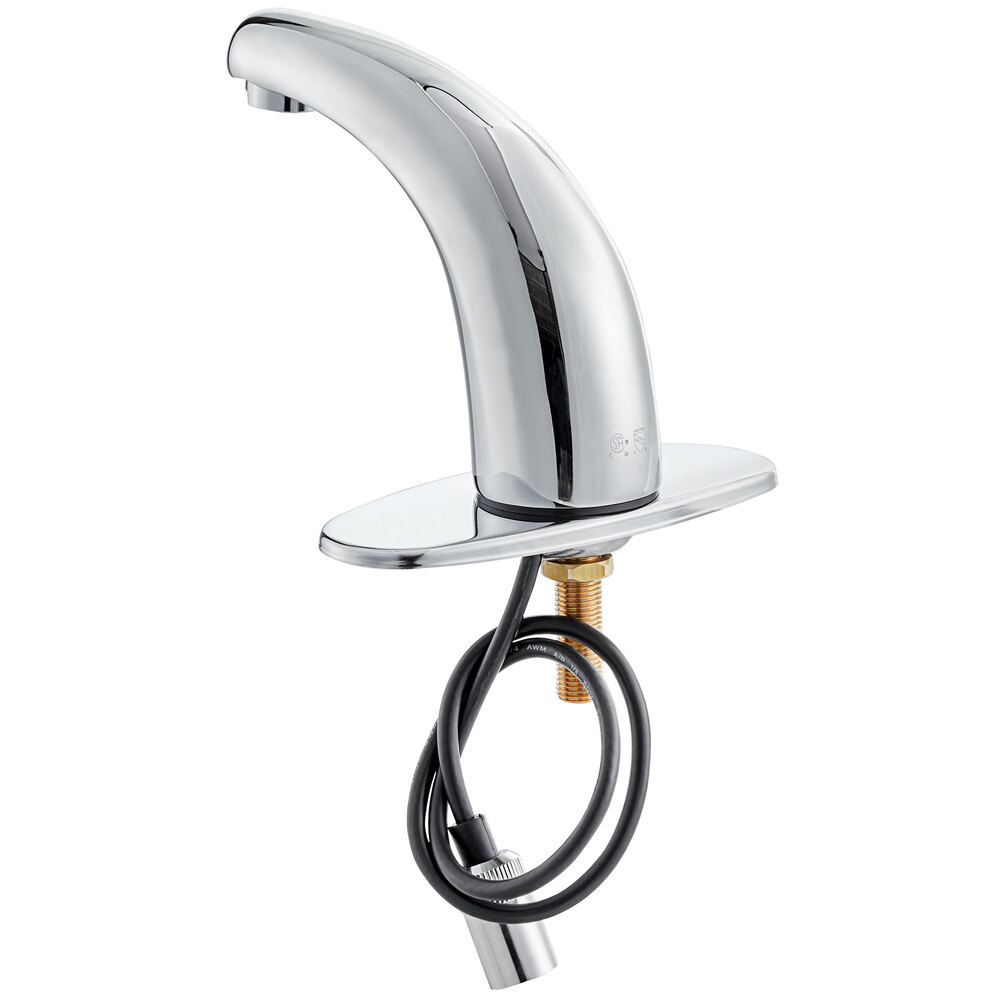

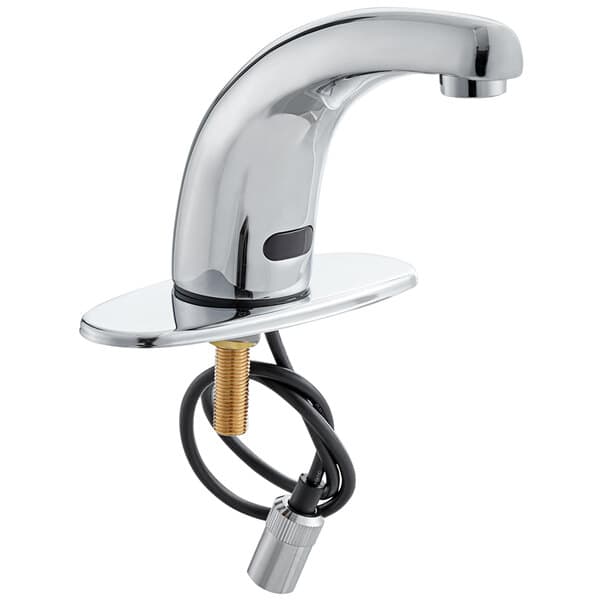

Waterloo Deck-Mounted Hands-Free Sensor Faucet with 4 3/4" Cast Spout and 6" Chrome-Plated Faucet Deck Plate

This Waterloo deck mounted hands-free sensor faucet is the perfect solution when you need a dependable water fixture for your facility's restrooms and hand-washing areas! It features a 4 3/4" long cast spout, with a chrome-plated finish and a single hole base to provide a contemporary and refined look wherever it's installed. Plus, it comes with a 6" deck plate. The deck plate is a great way to create a seamless and attractive connection point between your faucet and the countertop. Made from chrome-plated stainless steel, it provides a polished look and superior durability.

This unit has an infrared proximity sensor with a 30 second timeout feature and an adjustable sensor range of 2-21 cm. Because a sensor activates the water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to spread, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.

The UL certified AC adapter with a level VI efficiency rating provides power for the faucet's control module, which installs below the countertop and connects to the faucet with an 18" flexible supply line. Or, you can also use (4) AA batteries if an outlet isn't convenient, and to provide backup power in case of an outage. A mixing valve also allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.

Waterloo sensor faucets provide the industry-leading quality you expect. With heavy chrome-plated brass faucet bodies and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.

Overall Dimensions:
Spout Length: 4 3/4"
Faucet Height: 4 3/4"

Overview

4 3/4" cast spout, 2.2 GPM flow rate, below deck manual mixing valve
Deck-mounted single base, (1) 18" stainless steel supply line to connect module to faucet
(2) 18" stainless steel supply lines, 1/2" NPSM female x 3/8" female compression fittings
Solid chrome-plated brass faucet with chrome-plated stainless steel deck plate for long life
Includes AC adapter and control module, can operate on batteries

ADA Compliant

This item meets criteria established by the Americans with Disabilities Act (ADA).

CSA, US and Canada

This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.

Specs

Spout Length 4 3/4 Inches

Faucet Height 4 3/4 Inches

Battery Type AA

Faucet Centers Single

Features ADA Compliant

Features ASME A112.18.1-2018 / CSA B125.1-18

Features California AB100 Compliant

Features Flex Inlets Included

Features Hands Free

Features NSF/ANSI 372

Features NSF/ANSI 61

Finish Chrome

Flow Rate 2 1/5 GPM

Material Brass

Mounting Holes Required 1 Mounting Hole

Mounting Style Deck Mounted

Plug Type NEMA 1-15P

Spout Clearance 3 3/4 Inches

Spout Type Cast

Temperature Rating 194 Degrees Fahrenheit

Type Touchless Faucets

Water Inlet Size 3/8 Inches

Features

Superior Durability

This unit comes with a 6" deck plate. The deck plate is a great way to create a seamless and attractive connection point between your faucet and the countertop. Made from chrome-plated stainless steel, it provides a polished look and superior durability.
Hands-Free Operation

This unit has an infrared proximity sensor with a 30 second timeout feature and an adjustable sensor range of 2-21 cm. Because a sensor activates the water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to spread, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.
Easy Installation

The UL certified AC adapter with a level VI efficiency rating provides power for the faucet's control module, which installs below the countertop and connects to the faucet with an 18" flexible supply line. Or, you can also use (4) AA batteries if an outlet isn't convenient, and to provide backup power in case of an outage.
Optimal Temperature Control

A mixing valve also allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.
Industry-Leading Quality

Waterloo sensor faucets provide the industry-leading quality you expect. With heavy chrome-plated brass faucet bodies and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.

Customer Q&A

The sensing distance on the faucet is pre-set; however, it can be further adjusted following these easy steps. Begin by pressing and holding the on/off button on the control module for about five seconds. The water will flow for a moment, and the LED light on the sensor will flash on and off as the water flow stops. Release the on/off button and place your hand at the chosen distance from the sensor. The LED light will flash ten times, then stay illuminated on the tenth flash to tell you that the range setting has been saved.
This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.
When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
