750EFDMHSDP4SS

Item #750EFDMHSDP4SS

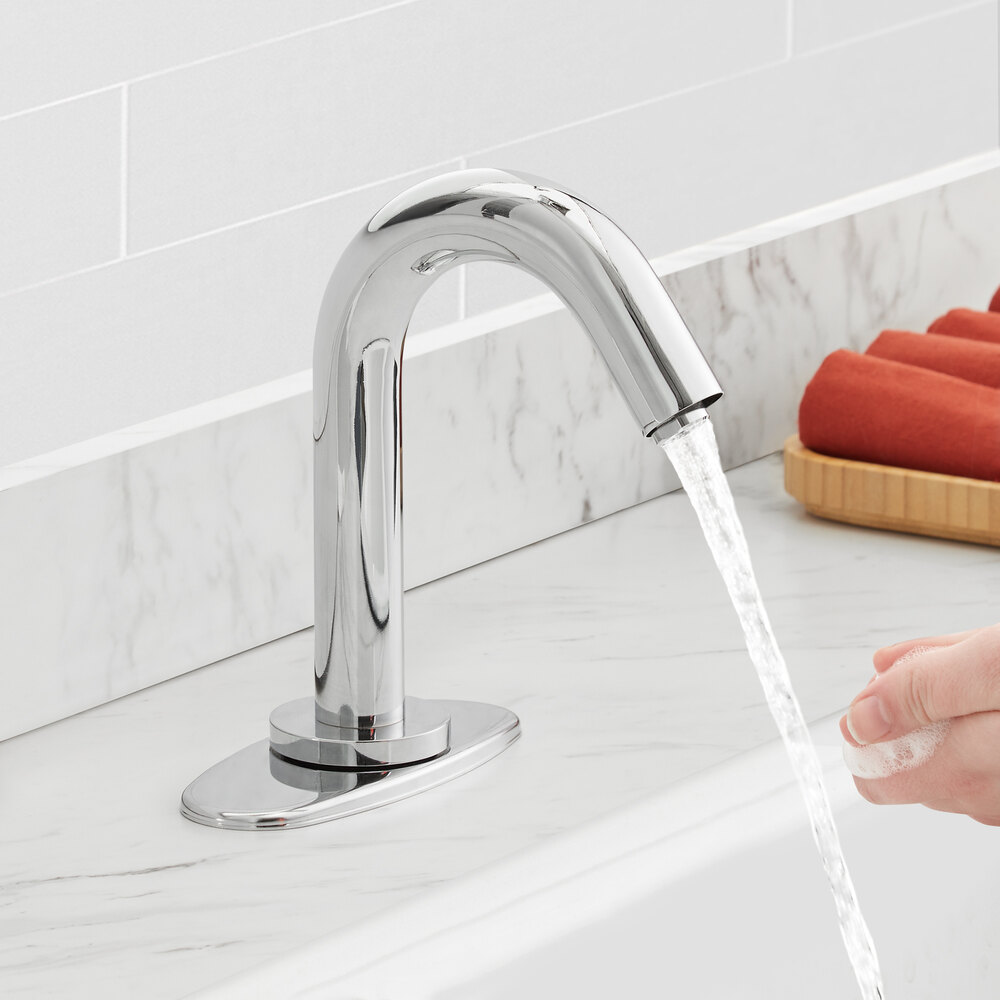

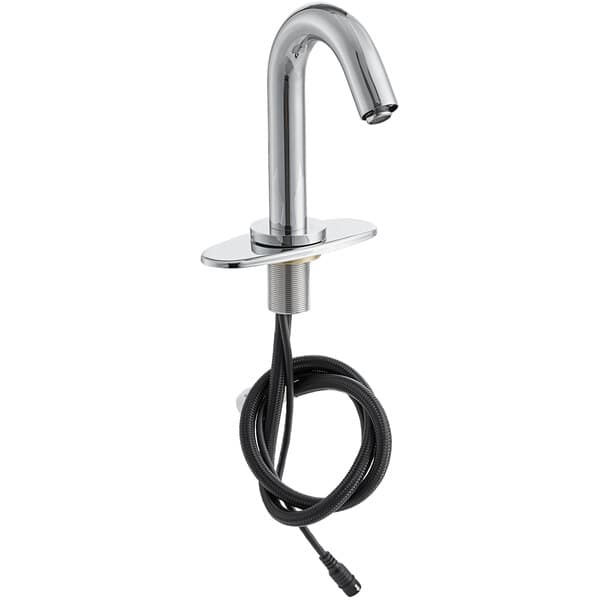

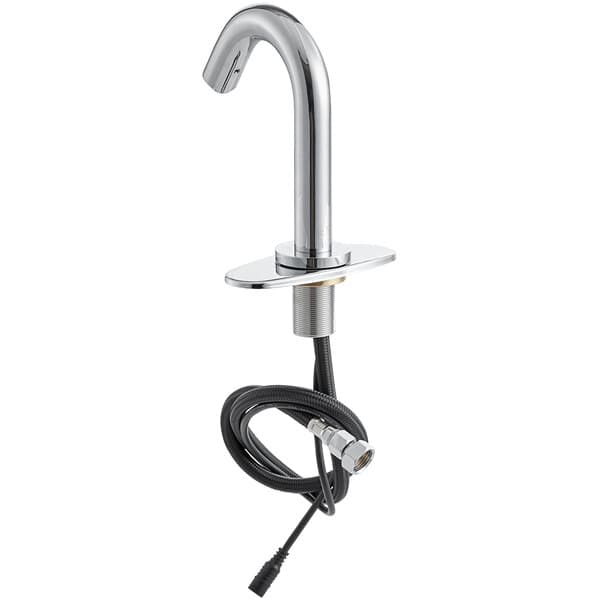

Waterloo Deck Mount Chrome Hands-Free Sensor Faucet with 4 3/4" Gooseneck Spout, Concealed Sensor, and 6" Chrome-Plated Faucet Deck Plate

This Waterloo deck-mounted chrome hands-free sensor faucet is the perfect solution when you need a dependable water fixture for your facility's restrooms and hand-washing areas! It features a 4 3/4 long, angled gooseneck spout on a single hole base, with a chrome-plated finish that provides a contemporary and refined look wherever it's installed. The sensor is also concealed so as to be more aesthetically pleasing than a traditional base-mounted sensor. Plus, this faucet comes with a 6" deck plate. The deck plate is a great way to create a seamless and attractive connection point between your faucet and the countertop. Made from chrome-plated stainless steel, it provides a polished look and superior durability.

It has an infrared proximity sensor with a 30 second timeout feature and an adjustable range of 2-15 cm. Because a sensor activates the water flow, it has several advantages over a traditional handle-style faucet. It is hands-free, which reduces the opportunity for germs to length, and it also prevents the faucet from running when it's not needed, which helps to cut down on your water bill.

The UL certified AC adapter with a Level VI efficiency rating is included to provide power for the faucet's control module, which installs below the countertop and connects to the faucet with an 18" flexible supply line. Or, you can also use (4) AA batteries if an outlet isn't convenient, and to provide backup power in case of an outage. A mixing valve also allows you to easily set the output temperature to the desired level. This prevents burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands. A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.

Waterloo sensor faucets provide the industry-leading quality you expect. With a heavy brass faucet body and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.

Overall Dimensions:
Spout Length: 4 3/4"
Faucet Height: 6 3/4"
Faucet Width: 6"

Overview

1.2 GPM flow rate
Deck-mounted single base, (1) 18" stainless steel supply line to connect module to faucet
Mixing valve, (2) 18" stainless steel supply lines, 1/2" NPSM x 3/8" female fittings
Solid chrome-plated brass faucet with chrome-plated stainless steel deck plate for long life
Includes AC adapter and control module

ADA Compliant

This item meets criteria established by the Americans with Disabilities Act (ADA).

CSA, US and Canada

This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.

Specs

Spout Length 4 3/4 Inches

Faucet Width 6 Inches

Faucet Height 6 3/4 Inches

Battery Type AA

Faucet Centers Single

Features ASME A112.18.1-2018 / CSA B125.1-18

Features California AB100 Compliant

Features Flex Inlets Included

Features NSF/ANSI 372

Features NSF/ANSI 61

Finish Chrome

Flow Rate 1 1/5 GPM

Material Brass

Mounting Holes Required 1 Mounting Hole

Mounting Style Deck Mounted

Power Type AC Adapter

Power Type Battery

Pressure Rating 60 PSI

Spout Clearance 3 1/4 Inches

Spout Type Gooseneck

Temperature Rating 194 Degrees Fahrenheit

Type Touchless Faucets

Water Inlet Size 3/8 Inches

Features

Attractive Deck Plate

The 6" deck plate is a great way to create a seamless and attractive connection point between your faucet and the countertop. Made from chrome-plated stainless steel, it provides a polished look and superior durability that contributes to the advantages over the traditional faucet.
Hands-Free Sensor

It has an infrared proximity sensor with a 30 second timeout feature and an adjustable range of 2-15 cm. Because of the hands-free sensor that activates the water flow, it reduces the opportunity for germs to spread, and prevents the faucet from running when it's not needed, which helps to cut down on your water bill. The sensor is also concealed, giving it an aesthetic look.
Powerful Adapter

The UL certified AC adapter with a Level VI efficiency rating is included to provide power for the faucet's control module, which installs below the countertop and connects to the faucet with an 18" flexible supply line. Or, you can also use (4) AA batteries if an outlet isn't convenient, and to provide backup power in case of an outage.
Achieve Perfect Temperature

A mixing valve also allows you to easily set the output temperature to the desired level, preventing burned hands from water that is too hot, while still ensuring that the water is warm enough for users to effectively wash their hands.

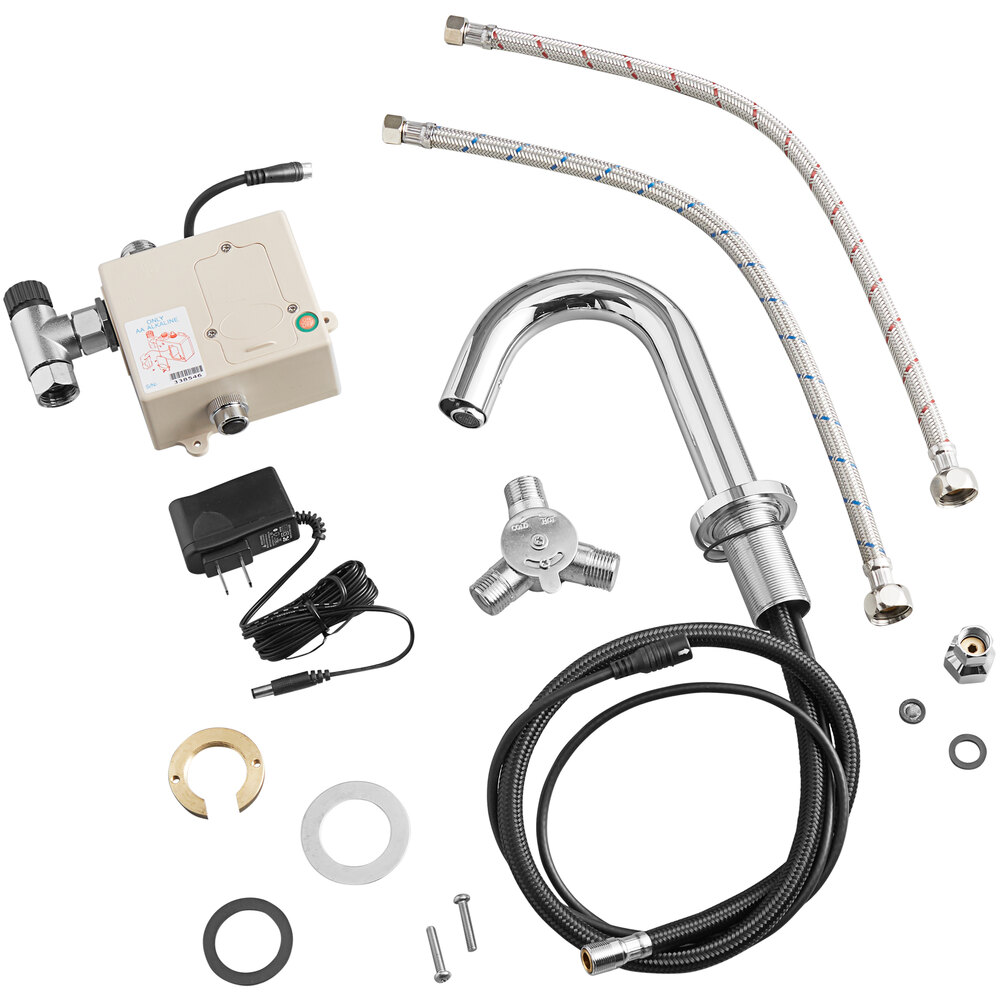

Included Parts

A pair of 18" flexible stainless steel connectors with 1/2" NPSM female x 3/8" female compression fittings connect the mixing valve to your building's water lines.
Exceptional Brand

Waterloo sensor faucets provide the industry-leading quality you expect. With a heavy brass faucet body and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.

Customer Q&A

The sensing distance on the faucet is pre-set; however, it can be further adjusted following these easy steps. Begin by pressing and holding the on/off button on the control module for about five seconds. The water will flow for a moment, and the LED light on the sensor will flash on and off as the water flow stops. Release the on/off button and place your hand at the chosen distance from the sensor. The LED light will flash ten times, then stay illuminated on the tenth flash to tell you that the range setting has been saved.
This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.
When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
