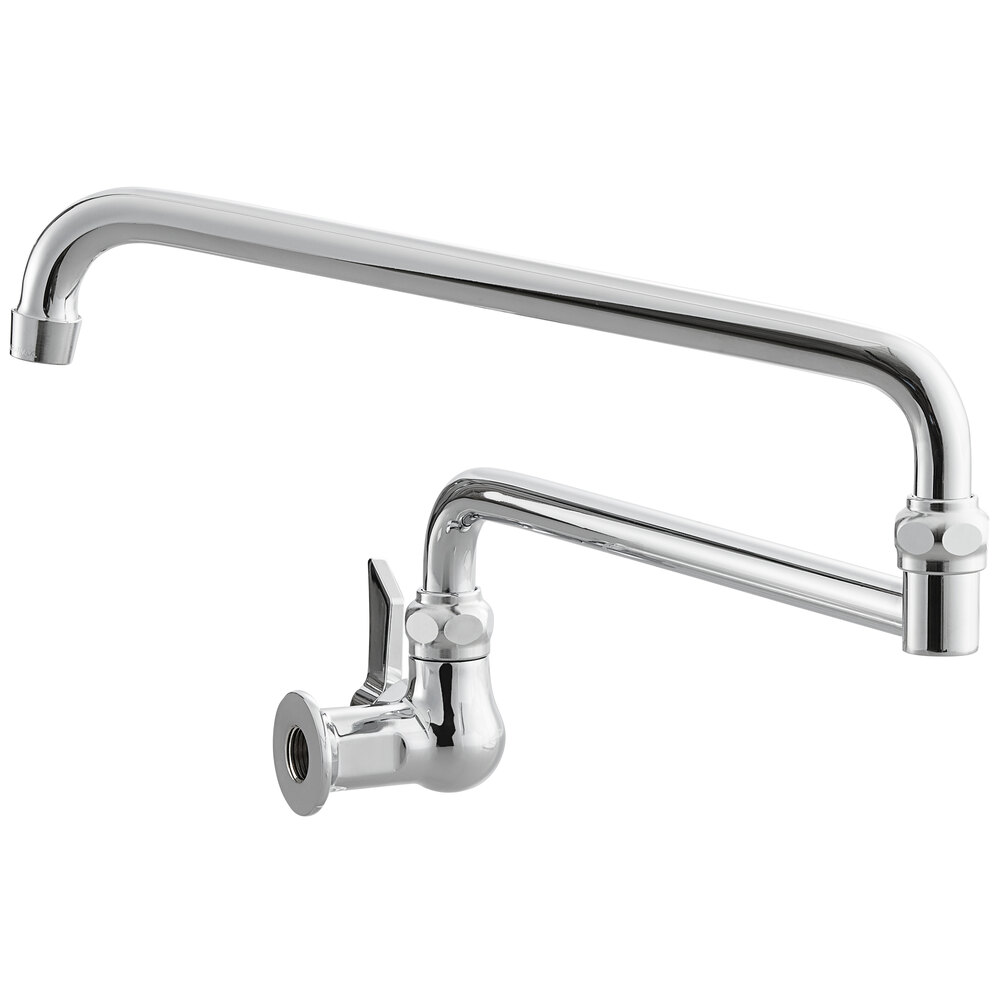

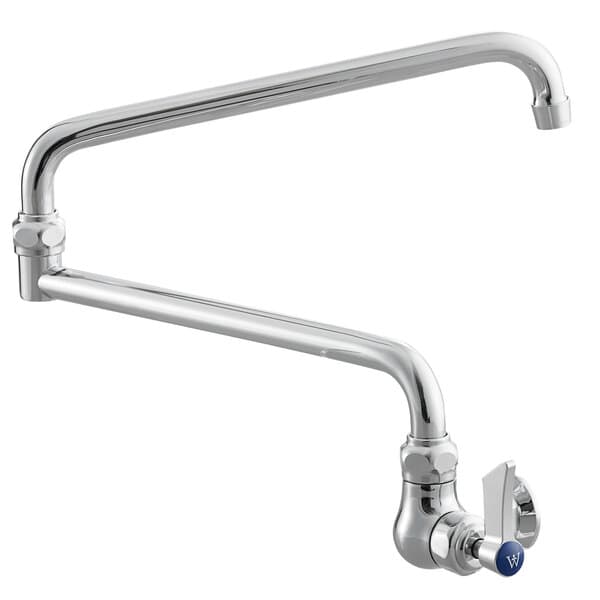

Waterloo Wall-Mounted Pot and Kettle Filler with Single Inlet and 24" Double-Jointed Swing Spout

Quickly and easily set up your steam tables and kettles with this Waterloo wall-mounted pot and kettle filler! Waterloo faucets provide the industry-leading quality you expect. With heavy chrome-plated brass faucet bodies, ceramic cartridges engineered for durability, and certifications from a wide range of national and local regulatory agencies, you can install this model with confidence. And to give you total peace of mind, it comes with a 3-year replacement warranty.

This faucet features a 24" double-jointed swing spout that gives greater range of motion than a standard swing nozzle, with the added benefit of allowing you to fold it out of the way to accommodate large, bulky items. A 2 GPM aerator provides a consistent flow rate and minimal splashing. The wall-mounted design is easy to install, and it comes with a single 1/2" NPT inlet.

This faucet uses a ceramic cartridge, which provides a much lower fail rate than the compression cartridges widely used in the industry. In this design, 2 ceramic discs fit together to create a watertight seal when closed. This removes the need for a rubber seat washer, which is one of the most frequently replaced parts on a faucet. A vertical handle makes it easy to turn the water flow on and off.

Overall Dimensions:
Spout Length: 24"
Faucet Height: 8 3/4"

Overview

24" double-jointed spout with 2 GPM aerator
Wall-mounted, single inlet with 1/2" NPT inlet
Temperature rating 40 - 180 degrees Fahrenheit
Heavy-duty chrome-plated brass construction

CSA, US and Canada

This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.

NSF Listed

This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Specs

Spout Length 24 Inches

Faucet Height 8 3/4 Inches

Features ASME A112.18.1-2018 / CSA B125.1-18

Features NSF Listed

Features NSF/ANSI 372

Features NSF/ANSI 61

Flow Rate 2 GPM

Handle Type 4 Arm

Mounting Style Wall Mounted

Spout Clearance 6 3/4 Inches

Spout Type Double Jointed

Temperature Rating 180 Degrees F

Thread Size 55/64"-27 UNS

Type Pot / Kettle Fillers

Resources & Downloads

Download useful documents and assets for this product.

Specsheet

Installation and Features

Download PDF (1.89 MB)
Warranty

Learn about Waterloo faucet coverage

Download PDF (150.01 KB)

Customer Q&A

This product cannot be shipped to Canada.
When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
For both wall and deck mounted faucets, installation kits are sold separately. Check the Works With items to find the proper installation kits and parts!
