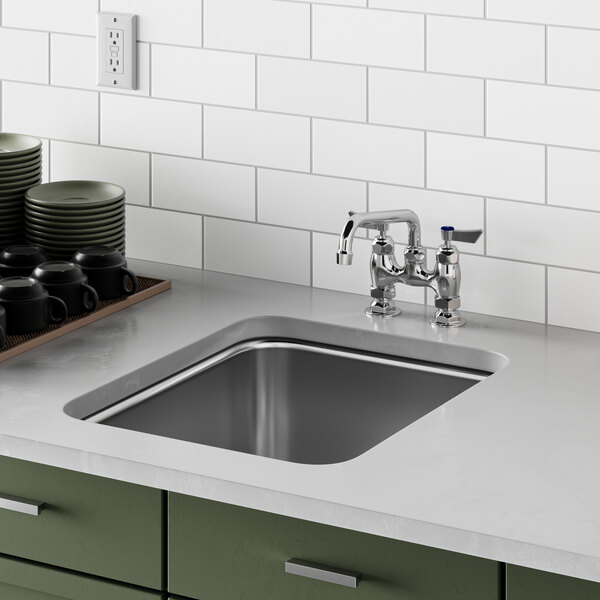

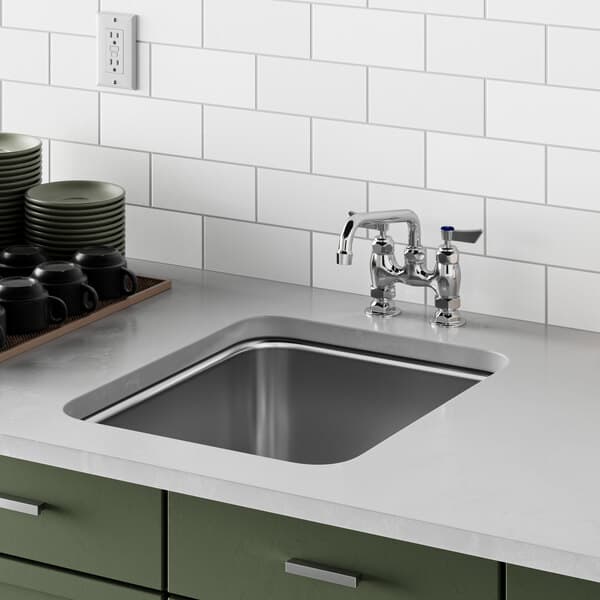

Waterloo 16" x 20" x 12" 18 Gauge Stainless Steel One Compartment Undermount Sink

Equip your kitchen, prep area, or bar with this Waterloo 16" x 20" x 12" 18 gauge stainless steel one compartment undermount sink. This sink features an undermount design. That means it is secured to the bottom of the countertop for a clean, professional, seamless installation. It's perfect for use in a front of the house bar area, or as an addition to a prep area where you need an extra handwashing, utility, or dump sink.

Designed for durability, corrosion-resistance, and sanitation this sink bowl is made of deep drawn 18 gauge, type 304 stainless steel. It features 2" radius corners that prevent grimy build-up and allow clean rinsing. To help reduce ambient noise in your busy kitchen or bar, this sink comes with sound deadening patches that are ready to install. Plus, the 3 1/2" drain opening is ready for installation so you can get your new sink up and running.

To get your sink up and running as quickly as possible, this unit comes with the required installation hardware.

Overall Dimensions:
Length: 18 1/2"
Width: 22 1/2"
Height: 12"

Bowl Dimensions:
Length: 16"
Width: 20"
Depth: 12"

Overview

Undermount design enables sleek installation for a seamless surface
Deep drawn 18 gauge type 304 stainless steel construction

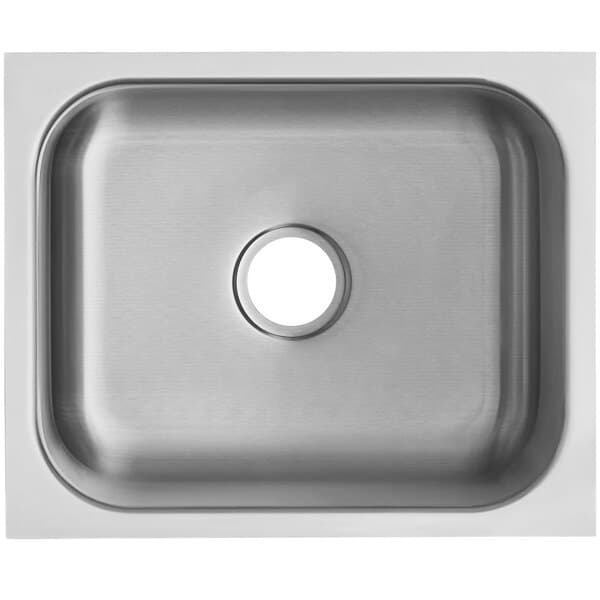

3 1/2" drain opening

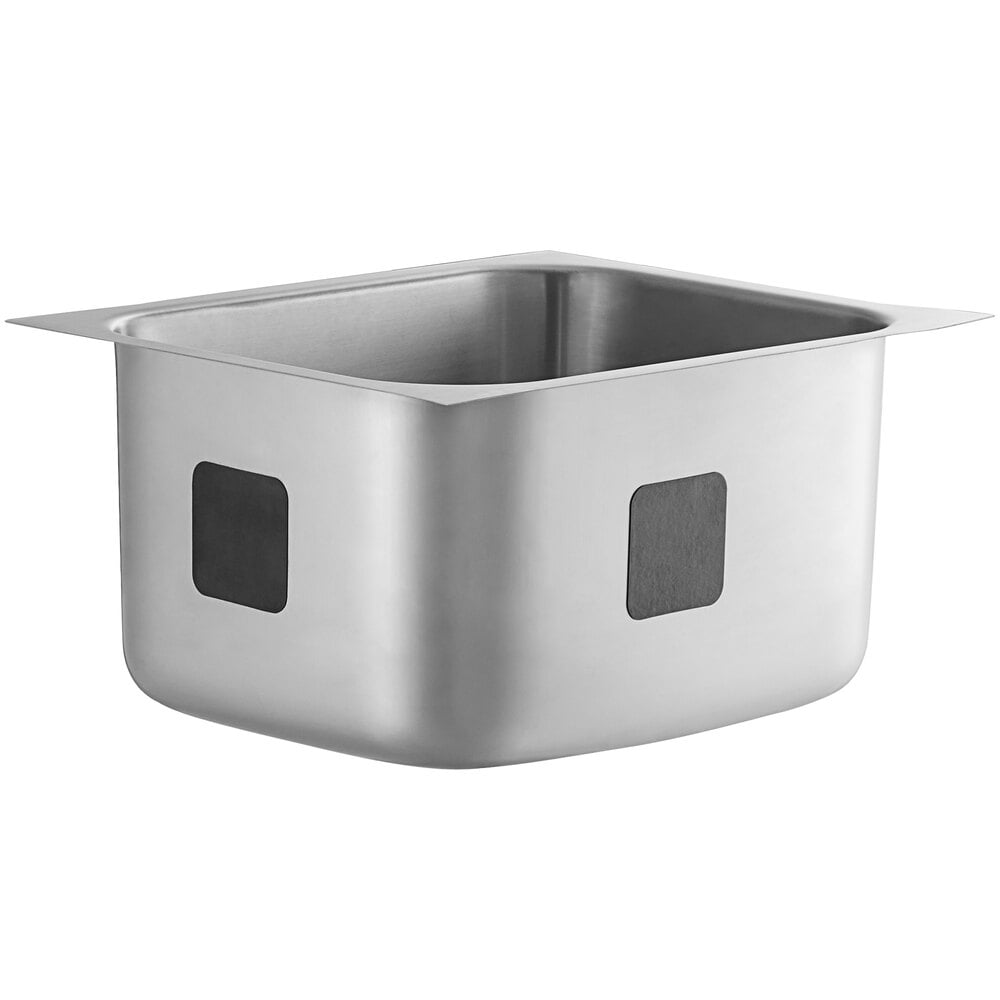

Comes with sound deadening patches to reduce ambient noise in your kitchen
Features 2" radius corners for ease of cleaning

NSF Listed

This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Specs

Length 18 1/2 Inches

Width 22 1/2 Inches

Height 12 Inches

Bowl Depth 12 Inches

Bowl Front to Back 20 Inches

Bowl Left to Right 16 Inches

Color Silver

Corner Radius 2 Inches

Edge Style Flush

Features NSF Listed

Gauge 18 Gauge

Installation Type Undermount

Material Stainless Steel

Number of Compartments 1 Compartment

Stainless Steel Type Type 304

Type Undermount Sinks

Features

Corrosion Resistant

Designed for durability, corrosion-resistance, and sanitation, this sink bowl is made of deep drawn 18 gauge, type 304 stainless steel. It features 2" radius corners that prevent grimy build-up and allow clean rinsing.

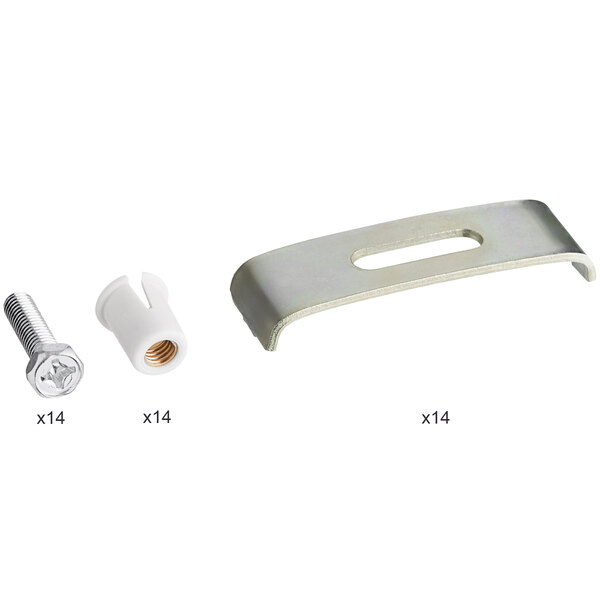

Installation Hardware Included

The 3 1/2" drain opening is ready for installation so you can get your new sink up and running. To get your sink up and running as quickly as possible, this unit comes with the required installation hardware.

Resources & Downloads

Download useful documents and assets for this product.

Specsheet

Installation and Features

Download PDF (1.27 MB)
Instructions

Step-by-step installation guide

Download PDF (839.47 KB)
Warranty

Learn about Waterloo faucet coverage

Download PDF (36.33 KB)
Cut-Out Template

Additional resources for your Waterloo product

Download PDF (6.14 MB)

Customer Q&A

This product is not intended for use in applications where potable (drinking) water is dispensed for human consumption.
If you're choosing a drop-in sink, this information should be provided in the specifications for the product. The cutout must be large enough to accommodate the sink bowl(s) but also not bigger than the lip of the sink, which overhangs the cutout and holds it in place.

If you're choosing an undermount sink, the sink will install underneath the counter, so your cutout size should be about the same as the total, combined dimensions of your sink bowl(s) for a clean look. Your countertop must also have a finished edge around the cutout, since top of the bowl installs below the cut, leaving it exposed.
